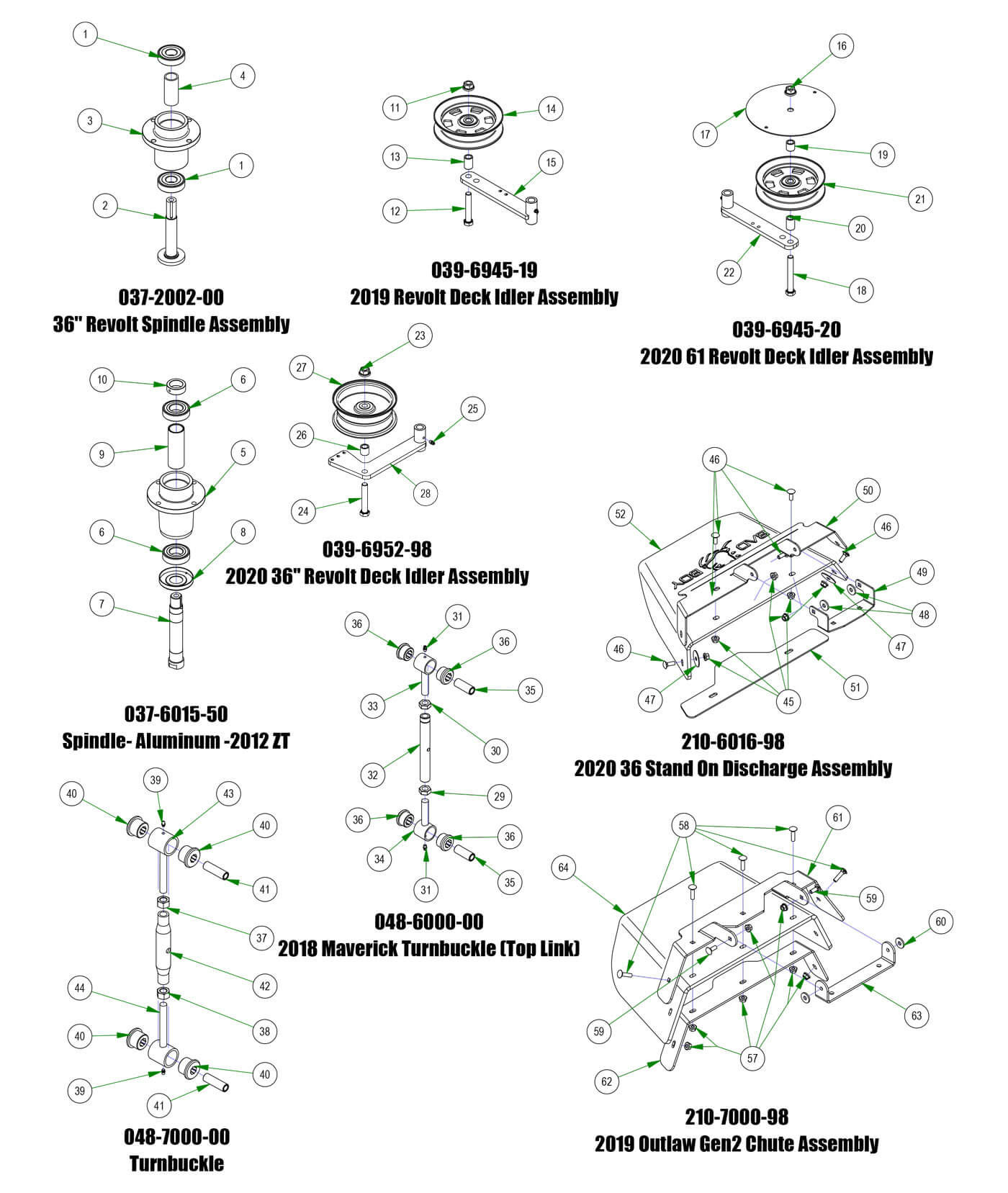

Deck Subassemblies
Parts Index
- 1 MZ Spindle Bearing - (Qty 2)
- 2 36" Revolt Spindle Shaft - (Qty 1)
- 3 MZ Spindle Housing - (Qty 1)
- 4 MZ Spindle Spacer-Component - (Qty 1)
- 5 Aluminum Spindle Housing-2010 - (Qty 1)
- 6 OBSOLETE USE 037-6029-00 - (Qty 2)
- 7 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 8 Dust Cover for 037-8000-00 - - (Qty 1)
- 9 Tube Spacer for Spindle Shaft - (Qty 1)
- 10 Collar Spacer - Top of Spindle - (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 12 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 13 .502x.750x1.130 Length Spacer - (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 15 Idler Bracket - (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 17 61" Revolt Idler Pulley Cover--Black - (Qty 1)
- 18 1/2-13 X 3.75 Hex Bolt-Grade 5 - (Qty 1)
- 19 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 20 .502x.750x1.130 Length Spacer - (Qty 1)
- 21 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 22 Idler Bracket - (Qty 1)
- 23 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 24 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 25 1/4-28 Threaded Grease Fitting - (Qty 1)
- 26 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 27 Double Bearing Flat Idler - (Qty 1)
- 28 2020 SD/36" Deck Idler Weldment--Plated - (Qty 1)
- 29 Nut, 5/8-18 RH - (Qty 1)
- 30 Nut, 5/8-18 LH - (Qty 1)
- 31 1/4-28 Threaded Grease Fitting - (Qty 2)
- 32 2018 Maverick Toplink Body - (Qty 1)
- 33 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 34 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 35 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 36 2018 Maverick Topllink Bushing - (Qty 4)
- 37 11/16-12 Hex Nut-2015 Toplink - (Qty 1)
- 38 11/16-12 Lefthand Hex Nut-Topl - (Qty 1)
- 39 1/4 Drive-in Grease Fitting - (Qty 2)
- 40 Bushing-2015 Outlaw Toplink - (Qty 4)
- 41 Sleeve-2015 Outlaw Toplink - (Qty 2)
- 42 2015 Outlaw Toplink Body - (Qty 1)
- 43 2015 Outlaw Toplink RH End - (Qty 1)
- 44 2015 Outlaw Toplink LH End - (Qty 1)
- 45 5/16-18 Nylon Flange Nut - (Qty 6)
- 46 5/16 x 7/8 Carriage Bolt - (Qty 6)
- 47 5/16" Fender Washer - (Qty 2)
- 48 .360 ID Plastic Washer - (Qty 2)
- 49 2020 36" Chute Hanger Bracket - (Qty 1)
- 50 Discharge Chute Bracket 48 MZ - (Qty 1)
- 51 OBSOLETE USE 039-4890-00 - (Qty 1)
- 52 2017 MZ Discharge Chute Rubber - (Qty 1)
- 57 5/16-18 Nylon Flange Nut - (Qty 7)
- 58 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 59 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 60 .360 ID Plastic Washer - (Qty 2)
- 61 Chute Bracket (upper) - (Qty 1)
- 62 Chute Bracket (lower) - (Qty 1)
- 63 Chute Hanger - (Qty 1)
- 64 Discharge Chute (Rubber Component) - (Qty 1)
