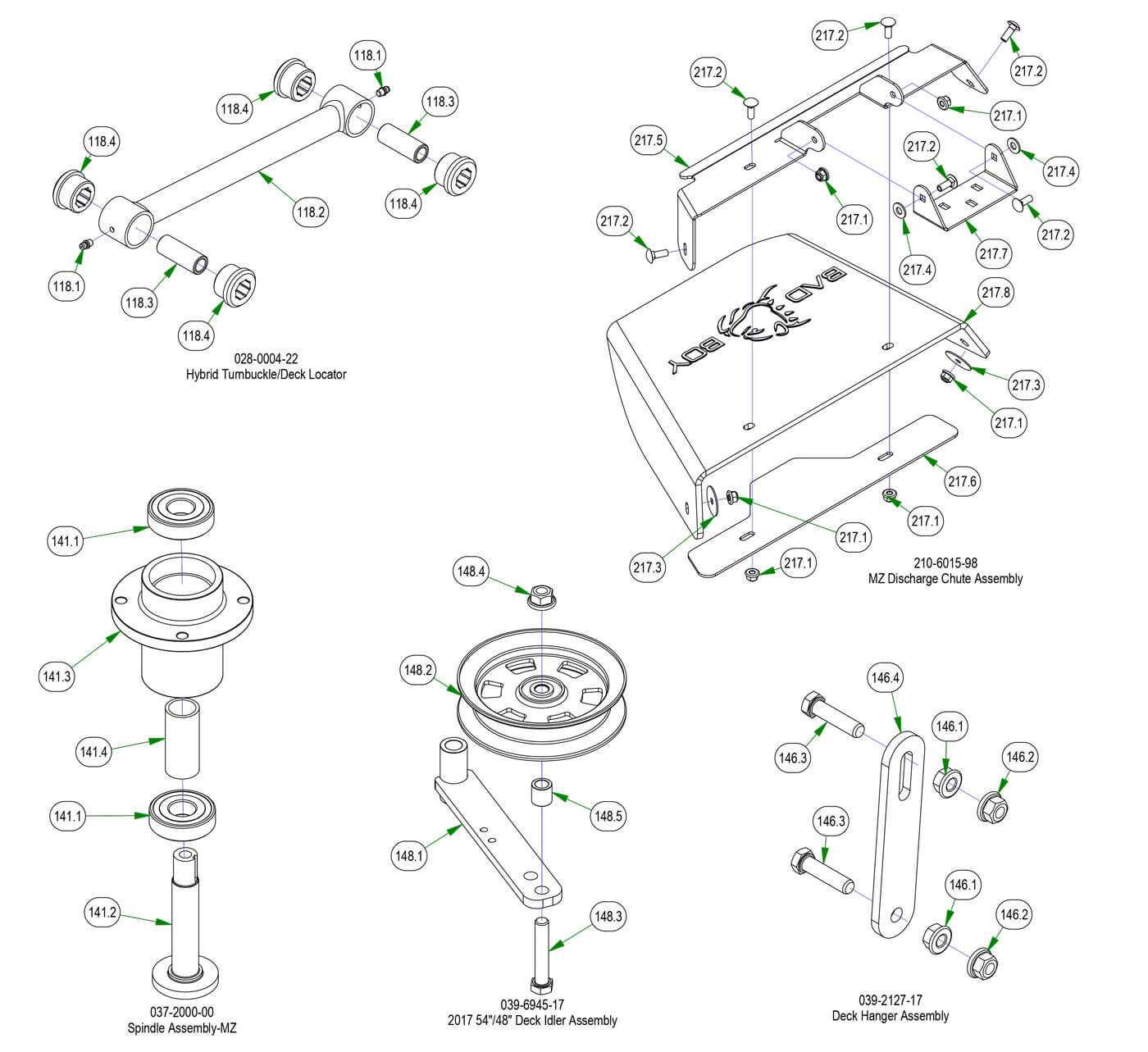

Deck Subassemblies
Parts Index
- 118 Hybrid Turnbuckle - (Qty 2)
- 118.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 118.3 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 118.4 2018 Maverick Topllink Bushing - (Qty 4)
- 141 Spindle Assembly-Magnum Models - (Qty 3)
- 141.1 MZ Spindle Bearing - (Qty 2)
- 141.2 mz spindle shaft - (Qty 1)
- 141.3 MZ Spindle Housing - (Qty 1)
- 141.4 MZ Spindle Spacer-Component - (Qty 1)
- 146 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 146.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 146.2 3/8 Nylock Flange Nut - (Qty 2)
- 146.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 146.4 Deck hanger for 039-2127-17 - (Qty 1)
- 148 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 148.1 Idler Bracket - (Qty 1)
- 148.2 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 148.3 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 148.4 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 148.5 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 217 MZ Discharge Chute Assembly - (Qty 1)
- 217.1 5/16-18 Nylon Flange Nut - (Qty 6)
- 217.2 5/16 x 7/8 Carriage Bolt - (Qty 6)
- 217.3 5/16" Fender Washer - (Qty 2)
- 217.4 .360 ID Plastic Washer - (Qty 2)
- 217.5 Discharge Chute Bracket 48 MZ - (Qty 1)
- 217.6 OBSOLETE USE 039-4890-00 - (Qty 1)
- 217.7 Chute Hanger 48 MZ - (Qty 1)
- 217.8 2017 MZ Discharge Chute Rubber - (Qty 1)
29 Results
