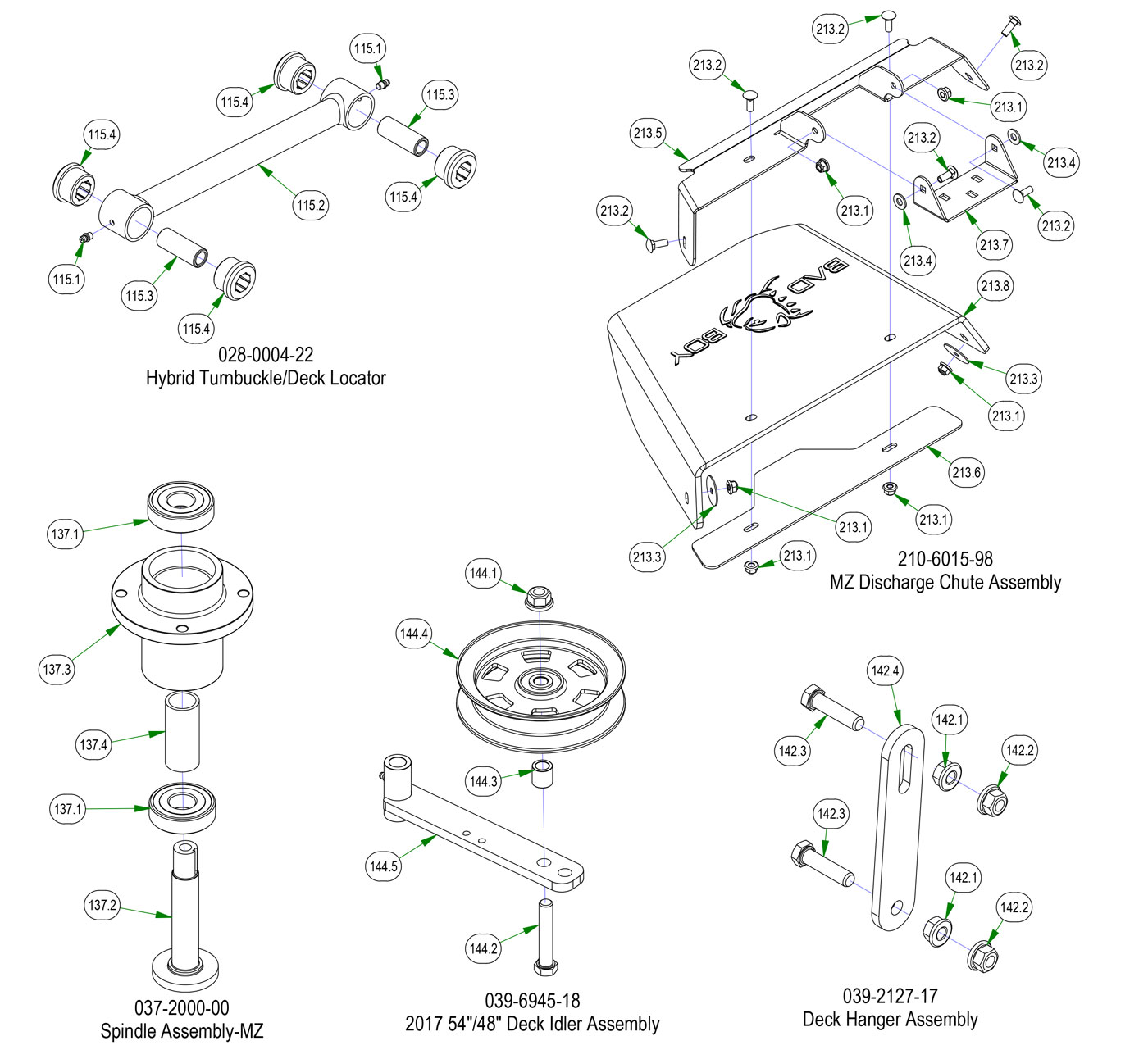

Deck Sub Assemblies
Parts Index
- 115 Hybrid Turnbuckle - (Qty 2)
- 115.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 115.3 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 115.4 2018 Maverick Topllink Bushing - (Qty 4)
- 137 Spindle Assembly-Magnum Models - (Qty 3)
- 137.1 MZ Spindle Bearing - (Qty 2)
- 137.2 mz spindle shaft - (Qty 1)
- 137.3 MZ Spindle Housing - (Qty 1)
- 137.4 MZ Spindle Spacer-Component - (Qty 1)
- 142 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 142.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 142.2 3/8 Nylock Flange Nut - (Qty 2)
- 142.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 142.4 Deck hanger for 039-2127-17 - (Qty 1)
- 144 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 144.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 144.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 144.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 144.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 144.5 Idler Bracket - (Qty 1)
- 213 MZ Discharge Chute Assembly - (Qty 1)
- 213.1 5/16-18 Nylon Flange Nut - (Qty 6)
- 213.2 5/16 x 7/8 Carriage Bolt - (Qty 6)
- 213.3 5/16" Fender Washer - (Qty 2)
- 213.4 .360 ID Plastic Washer - (Qty 2)
- 213.5 Discharge Chute Bracket 48 MZ - (Qty 1)
- 213.6 OBSOLETE USE 039-4890-00 - (Qty 1)
- 213.7 Chute Hanger 48 MZ - (Qty 1)
- 213.8 2017 MZ Discharge Chute Rubber - (Qty 1)
