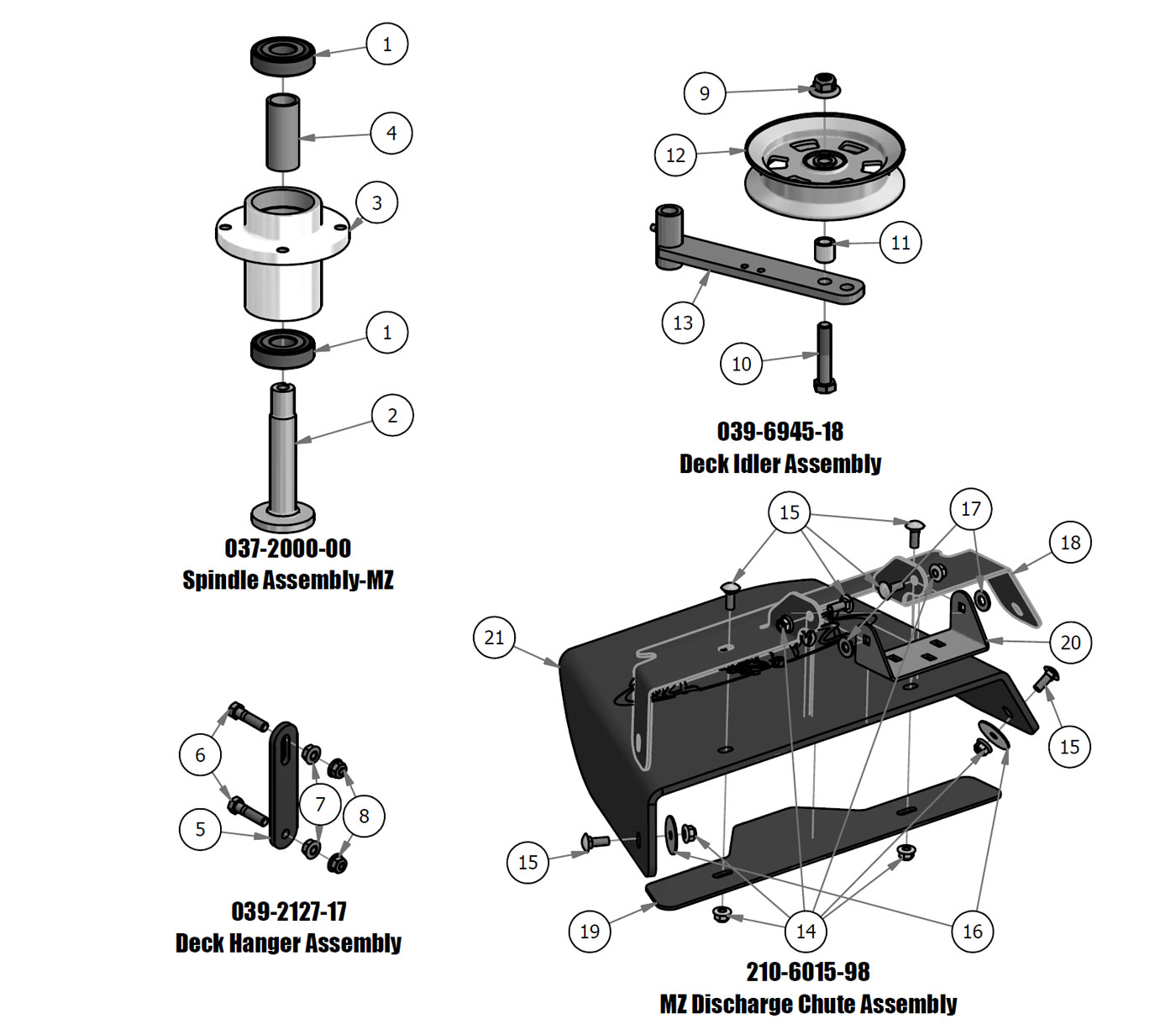

Spindle, Deck Hanger, Deck Idler, Chute Assembly
Parts Index
- 1 MZ Spindle Bearing - (Qty 2)
- 2 mz spindle shaft - (Qty 1)
- 3 MZ Spindle Housing - (Qty 1)
- 4 MZ Spindle Spacer-Component - (Qty 1)
- 5 Deck hanger for 039-2127-17 - (Qty 1)
- 6 3/8 x 1 1/2 Bolt - (Qty 2)
- 7 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 8 3/8 Nylock Flange Nut - (Qty 2)
- 9 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 10 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 11 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 12 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 13 Idler Bracket - (Qty 1)
- 14 5/16-18 Nylon Flange Nut - (Qty 6)
- 15 5/16 x 7/8 Carriage Bolt - (Qty 6)
- 16 5/16" Fender Washer - (Qty 2)
- 17 .360 ID Plastic Washer - (Qty 2)
- 18 Discharge Chute Bracket 48 MZ - (Qty 1)
- 19 OBSOLETE USE 039-4890-00 - (Qty 1)
- 20 Chute Hanger 48 MZ - (Qty 1)
- 21 2017 MZ Discharge Chute Rubber - (Qty 1)
21 Results
