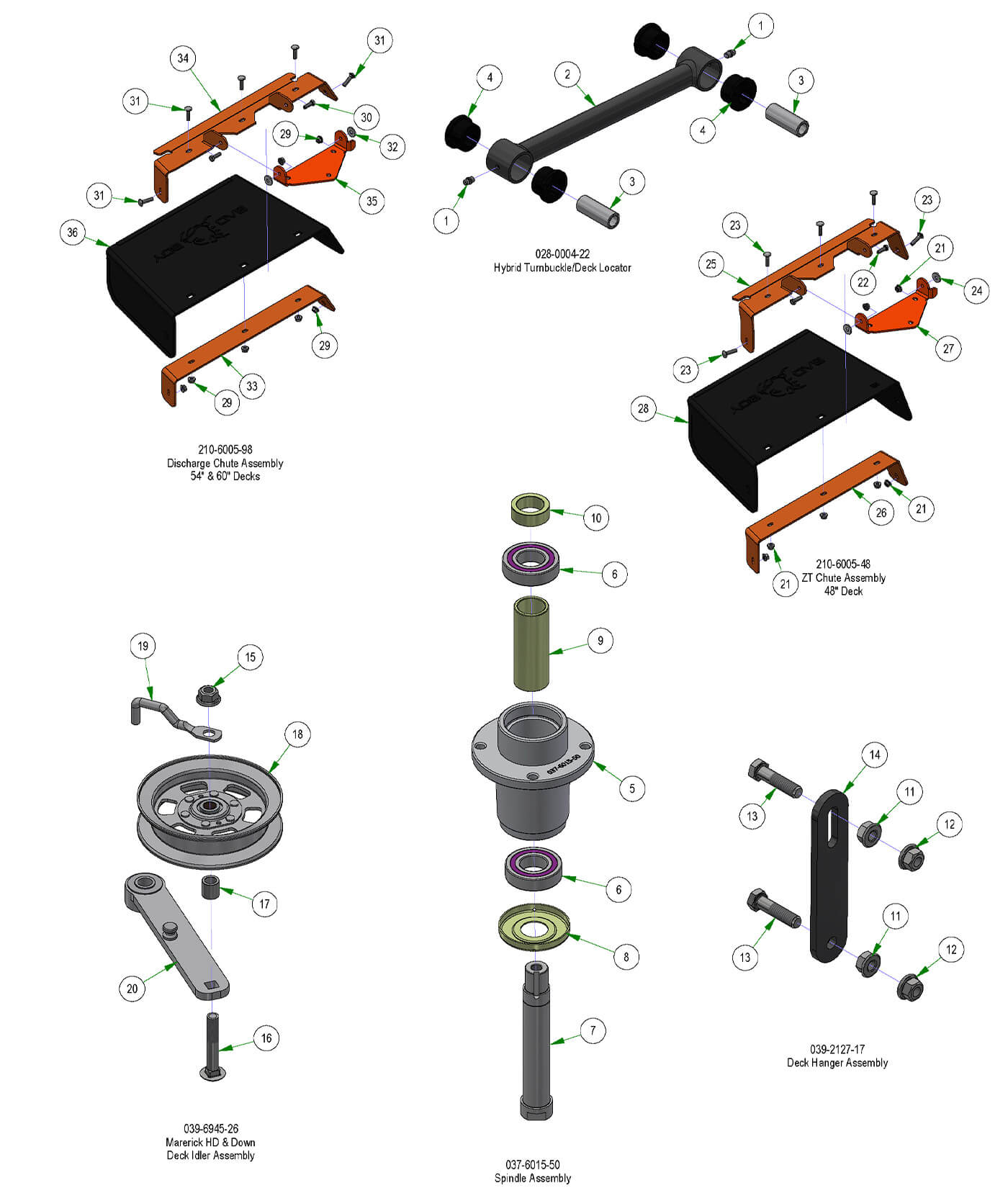

Deck Subassemblies
Parts Index
- 1 1/4-28 Threaded Grease Fitting - (Qty 12)
- 3 2018 Maverick Topllink Bushing Sleeve - (Qty 12)
- 4 2018 Maverick Topllink Bushing - (Qty 24)
- 5 Aluminum Spindle Housing-2010 - (Qty 9)
- 6 OBSOLETE USE 037-6029-00 - (Qty 18)
- 7 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 9)
- 8 Dust Cover for 037-8000-00 - - (Qty 9)
- 9 Tube Spacer for Spindle Shaft - (Qty 9)
- 10 Collar Spacer - Top of Spindle - (Qty 9)
- 11 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 24)
- 12 3/8 Nylock Flange Nut - (Qty 24)
- 13 3/8 x 1 1/2 Bolt - (Qty 24)
- 14 Deck hanger for 039-2127-17 - (Qty 12)
- 15 1/2-13 Nylon Insert Flange Nut - (Qty 3)
- 16 1/2-13 x 3 Carriage Bolt Grade 5 - (Qty 3)
- 17 Spacer 3/4ODx1/2IDx0.75 - (Qty 3)
- 18 2017 5" Split Idler Pulley-Tensioner Only - (Qty 3)
- 19 Small Belt Retainer - (Qty 3)
- 20 2025 Tensioner Arm With Bearings - (Qty 3)
- 21 5/16-18 Nylon Flange Nut - (Qty 7)
- 22 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 23 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 24 .360 ID Plastic Washer - (Qty 2)
- 25 48/52 Discharge Top Bracket - (Qty 1)
- 26 48/52 Discharge Lower Bracket - (Qty 1)
- 27 Discharge Chute Hanger-Deck - (Qty 1)
- 28 Discharge Chute (Rubber Component) - (Qty 1)
- 29 5/16-18 Nylon Flange Nut - (Qty 14)
- 30 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 4)
- 31 5/16-18 X 1-1/4 Carriage Bolt - (Qty 10)
- 32 .360 ID Plastic Washer - (Qty 4)
- 33 60 Discharge Lower Bracket - (Qty 2)
- 34 60 Discharge Chute Upper - (Qty 2)
- 35 Discharge Chute Hanger-Deck - (Qty 2)
- 36 Discharge Chute (Rubber Component) - (Qty 2)
35 Results
