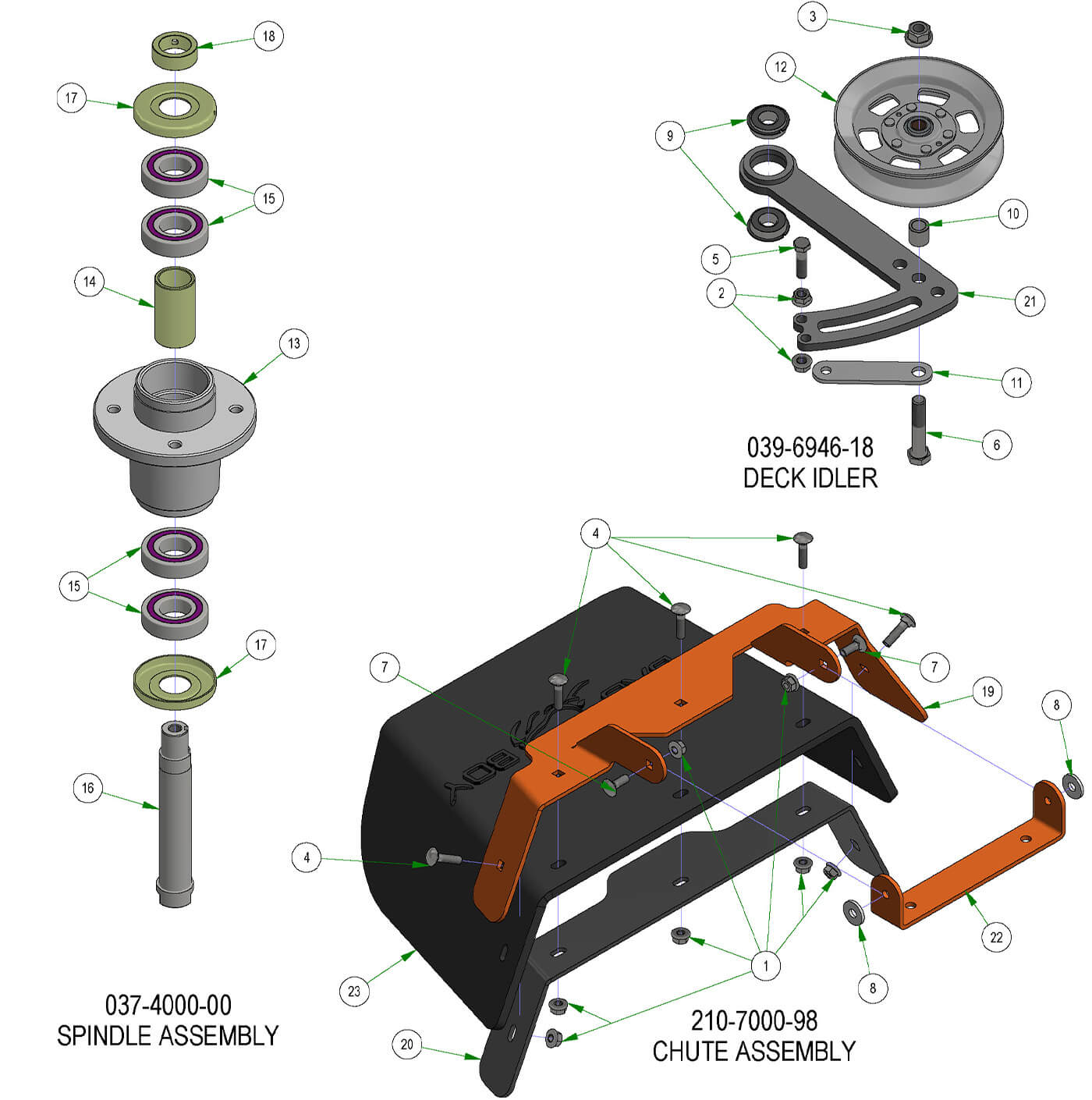

Deck Subassemblies
Parts Index
- 1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 2 5/16-18 Nylon Flange Nut - (Qty 7)
- 3 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 4 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 5 3/8 x 1 1/2 Bolt - (Qty 1)
- 6 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 7 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 8 .360 ID Plastic Washer - (Qty 2)
- 9 Ball Bearing w/clip; 99502H-NR; 5/8" Bore - (Qty 2)
- 10 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 11 Belt Tensioner Retainer Plate--Plated - (Qty 1)
- 12 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 13 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 14 2015 Spindle Spacer - (Qty 1)
- 15 OBSOLETE USE 037-6029-00 - (Qty 4)
- 16 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 17 Dust Cover for 037-8000-00 - - (Qty 2)
- 18 Collar Spacer - Top of Spindle - (Qty 1)
- 19 Chute Bracket (upper) - (Qty 1)
- 20 Chute Bracket (lower) - (Qty 1)
- 22 Chute Hanger - (Qty 1)
- 23 Discharge Chute (Rubber Component) - (Qty 1)
