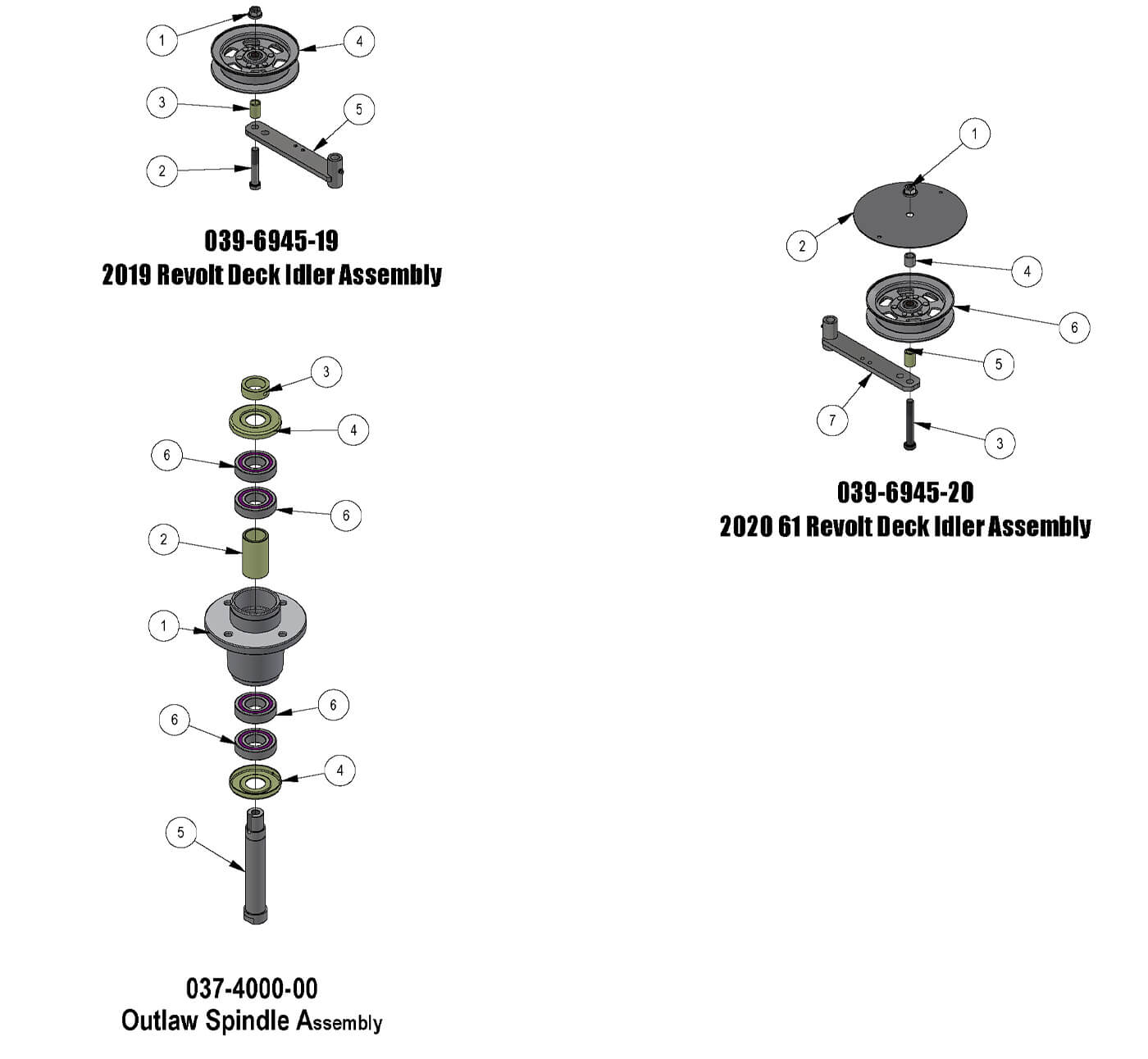

Deck Subassemblies
Parts Index
- 1-1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 2-1 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 3-1 .502x.750x1.130 Length Spacer - (Qty 1)
- 4-1 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 5-1 Idler Bracket - (Qty 1)
- 1-2 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 2-2 61" Revolt Idler Pulley Cover--Black - (Qty 1)
- 3-2 1/2-13 X 3.75 Hex Bolt-Grade 5 - (Qty 1)
- 4-2 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 5-2 .502x.750x1.130 Length Spacer - (Qty 1)
- 6-2 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 7-2 Idler Bracket - (Qty 1)
- 1-3 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 2-3 2015 Spindle Spacer - (Qty 1)
- 3-3 Collar Spacer - Top of Spindle - (Qty 1)
- 4-3 Dust Cover for 037-8000-00 - - (Qty 2)
- 5-3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 6-3 OBSOLETE USE 037-6029-00 - (Qty 4)
18 Results
