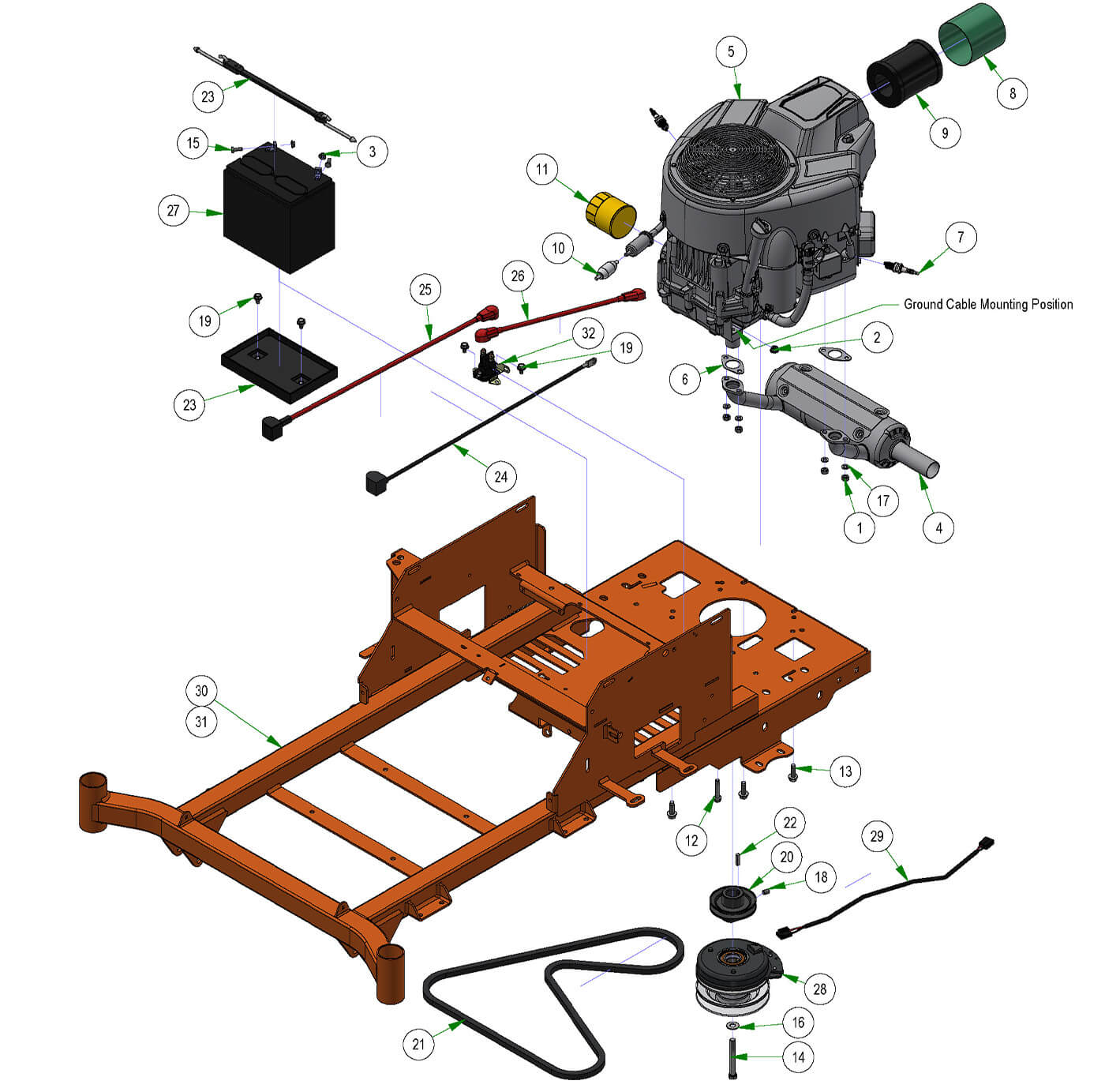

Engine - CXI Briggs
Parts Index
- 1 M8 - 1.25 Stainless Steel Nut - (Qty 4)
- 3 1/4-20 Hex Flange Nuts Zinc w/ - (Qty 2)
- 4 810cc Vanguard Exhaust - (Qty 1)
- 5 Vanguard 25hp CXI with out Oil Filter - (Qty 1)
- 6 Exhaust Gasket for 015-0077-00 - (Qty 2)
- 7 Spark Plug-Kohler/Briggs - (Qty 2)
- 8 Pre-Cleaner for Vanguard CXI Engine - (Qty 1)
- 9 OBSOLETE USE 063-3003-00 - (Qty 1)
- 10 Universal Inline Fuel Filter - (Qty 1)
- 11 Briggs Oil Filter - (Qty 1)
- 13 3/8 x 1 1/8 Engine Mounting Bolt - (Qty 3)
- 14 7/16-20x3.5” Hex Bolt GR 8 W/ Patch - (Qty 1)
- 15 1/4-20 X 3/4 GR 5 Hex Bolts - (Qty 2)
- 16 3/8 USS Flat Washer Zinc - (Qty 1)
- 17 5/16 Lock washer Zinc - (Qty 4)
- 18 3/8-16x1/2 Socket Set Cup Point - (Qty 1)
- 19 5/16-18 x ½” HWH unslot (F) tcs zinc - (Qty 4)
- 20 3 3/4 Motor Pulley-2009 MZ - (Qty 1)
- 21 Pump Belt for ZT, MZ, Avenger - (Qty 1)
- 22 1/4 x 1 Square Key - (Qty 1)
- 23 2023 Battery Hold Down Assembly - (Qty 1)
- 24 24 inch Black Cable - MZ/ZT - (Qty 1)
- 25 24 Red Battery Cable - (Qty 1)
- 26 14" Red Battery Cable - (Qty 1)
- 27 Battery - All models except Renegade and Revolt - (Qty 1)
- 28 105 Ft Lb. Clutch- 1” Shaft - (Qty 1)
- 29 Clutch Pigtail - (Qty 1)
- 30 2025 MZ 42-48 Frame--Orange - (Qty 1)
- 31 2025 MZ-Avenger 54-60 Frame--Orange - (Qty 1)
- 32 Solenoid (752-1251-210HP) - (Qty 1)
30 Results
