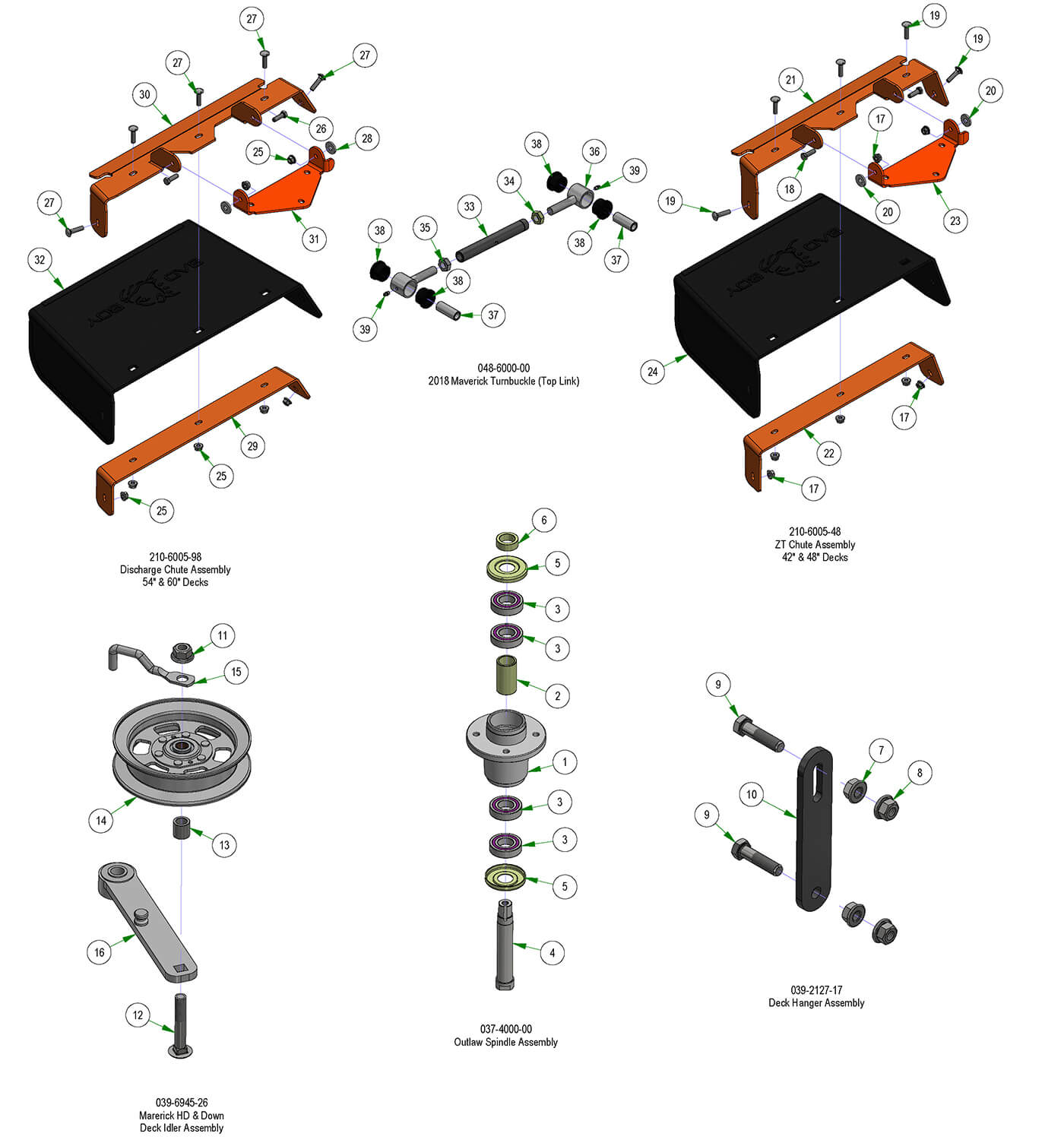

Deck Subassemblies
Parts Index
- 1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 2 2015 Spindle Spacer - (Qty 1)
- 3 OBSOLETE USE 037-6029-00 - (Qty 4)
- 4 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 5 Dust Cover for 037-8000-00 - - (Qty 2)
- 6 Collar Spacer - Top of Spindle - (Qty 1)
- 7 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 8 3/8 Nylock Flange Nut - (Qty 2)
- 9 3/8 x 1 1/2 Bolt - (Qty 2)
- 10 Deck hanger for 039-2127-17 - (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 12 1/2-13 x 3 Carriage Bolt Grade 5 - (Qty 1)
- 13 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 15 Small Belt Retainer - (Qty 1)
- 16 2025 Tensioner Arm With Bearings - (Qty 1)
- 17 5/16-18 Nylon Flange Nut - (Qty 7)
- 18 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 19 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 20 .360 ID Plastic Washer - (Qty 2)
- 21 48/52 Discharge Top Bracket - (Qty 1)
- 22 48/52 Discharge Lower Bracket - (Qty 1)
- 23 Discharge Chute Hanger-Deck - (Qty 1)
- 24 Discharge Chute (Rubber Component) - (Qty 1)
- 25 5/16-18 Nylon Flange Nut - (Qty 7)
- 26 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 27 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 28 .360 ID Plastic Washer - (Qty 2)
- 29 60 Discharge Lower Bracket - (Qty 1)
- 30 60 Discharge Chute Upper - (Qty 1)
- 31 Discharge Chute Hanger-Deck - (Qty 1)
- 32 Discharge Chute (Rubber Component) - (Qty 1)
- 33 2018 Maverick Toplink Body - (Qty 1)
- 34 Nut, 5/8-18 LH - (Qty 1)
- 35 Nut, 5/8-18 RH - (Qty 1)
- 36 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 37 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 38 2018 Maverick Topllink Bushing - (Qty 4)
- 39 1/4-28 Threaded Grease Fitting - (Qty 2)
39 Results
