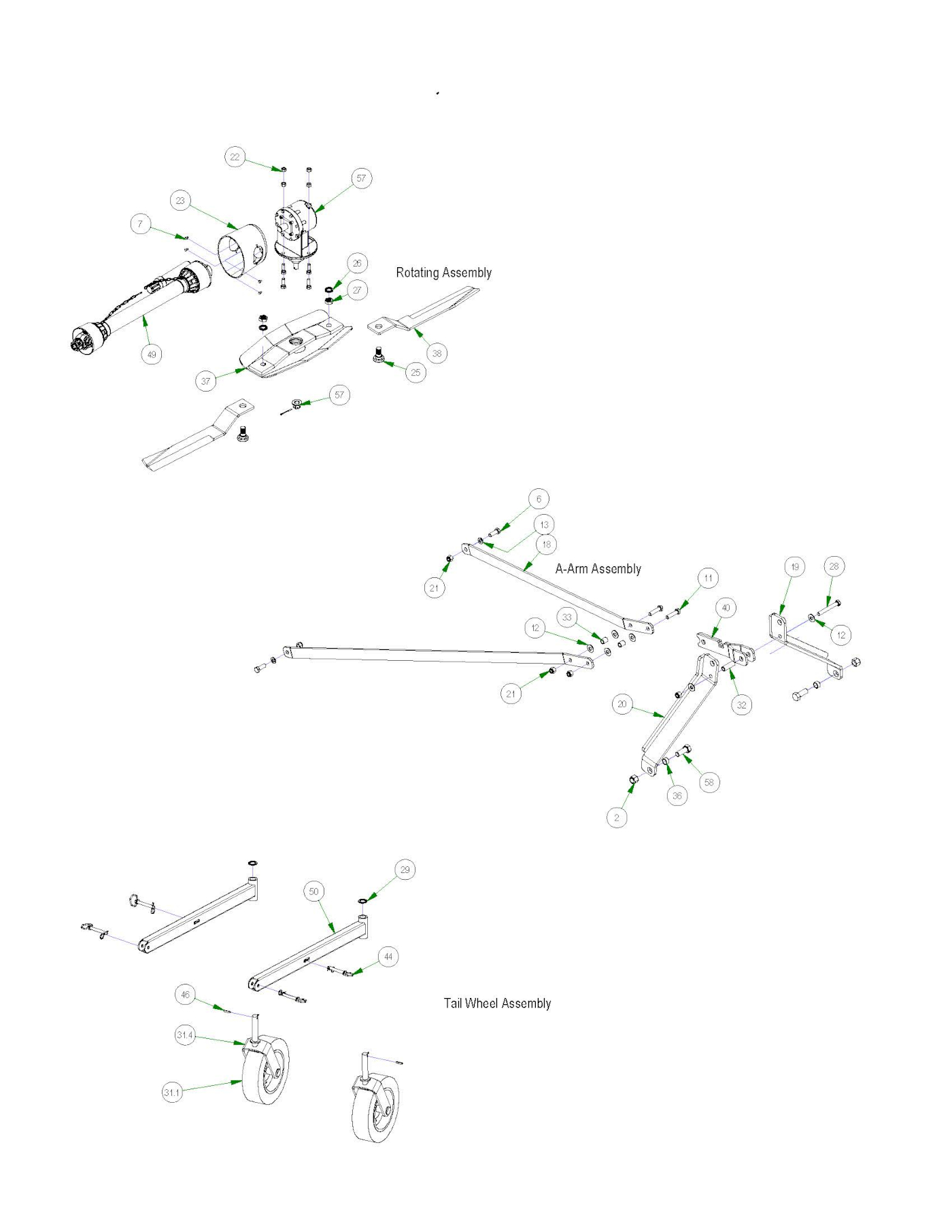

Gearbox, A-Arms, and Tailwheel Parts
Parts Index
- 22 5/8 Center Lock Nut GrC-Fine - (Qty 4)
- 7 5/16-18 x 1/2 Hex Bolt-Grade 5 - (Qty 4)
- 23 PTO Guard - (Qty 1)
- 26 Blade Bolt Lockwasher - (Qty 2)
- 27 Blade Nut Only - (Qty 2)
- 38 7' Rotary Cutter Blade - (Qty 2)
- 25 Blade Bolt Only - (Qty 2)
- 37 7' Infinity Stump Jumper - (Qty 1)
- 21 5/8 Nylock Nut - (Qty 5)
- 13 .630 ID X 1.122 OD X .142 THK - (Qty 2)
- 11 5/8-11 X 2-1/2 GR 5 Hex Bolts - (Qty 2)
- 12 5/8 Flat Washer - (Qty 6)
- 21 5/8 Nylock Nut - (Qty 5)
- 28 5/8 x 4 3/4 Hex Bolt - (Qty 1)
- 12 5/8 Flat Washer - (Qty 6)
- 40 4', 5', 6' Top Link Weldment - (Qty 1)
- 32 Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter - (Qty 1)
- 36 Cat 1 A-Arm Bushing - (Qty 2)
- 29 1 1/4" Flat Washer - (Qty 2)
- 44 4" x 5/8" Lynch Pin - (Qty 4)
- 46 Roll Pin for 2015 & up Tail Wheel Assembly - (Qty 2)
- 31.4 Fork-2015 5' and 6' Cutters (and up) - (Qty 1)
22 Results
#325-0004-00 $9.99

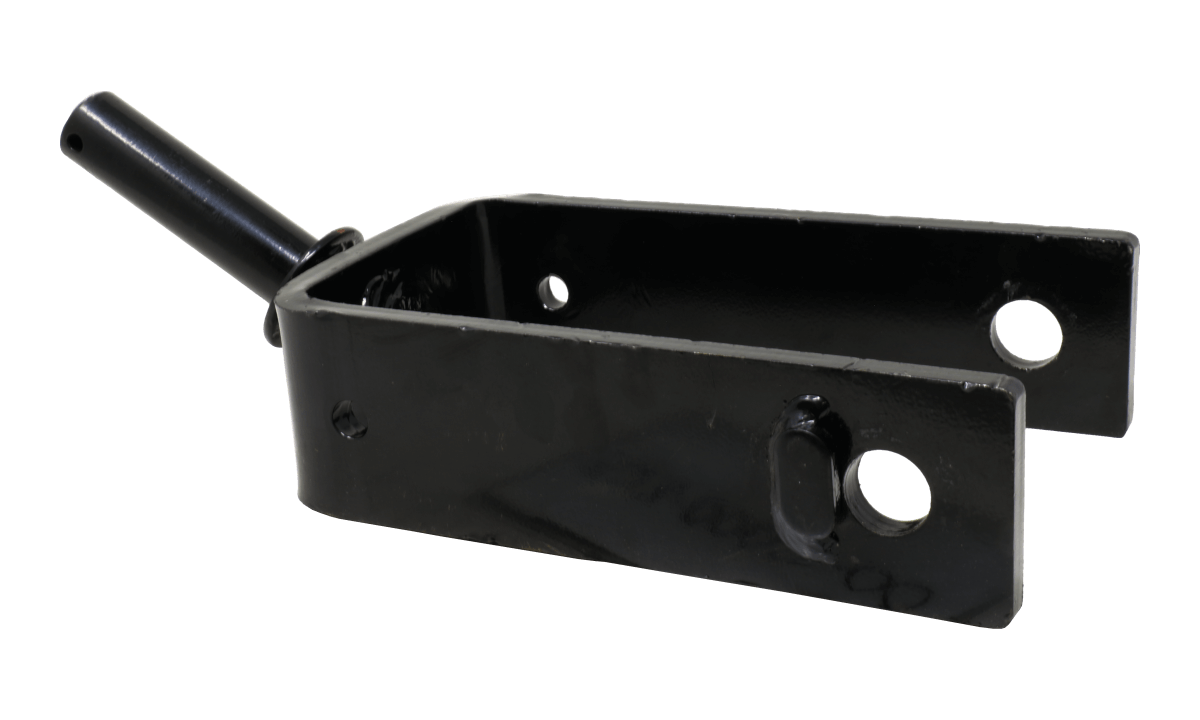

Hinge Spacer - 4, 5 and 6 Foot Rotary Cutter
Replaces the 325-0001-00
Qty Used: 1
$9.99
Quantity: Qty:
