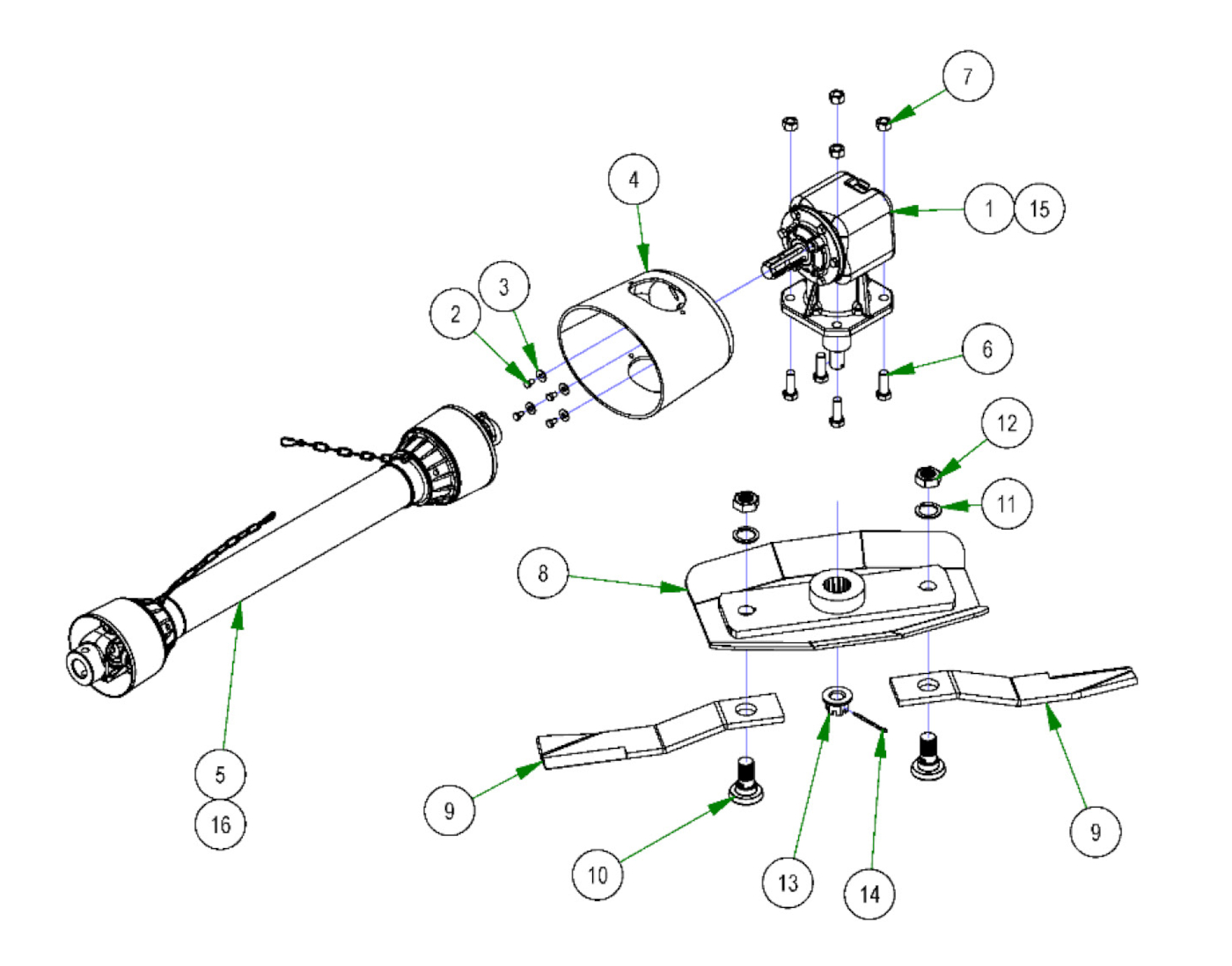

4' Cutter Gearbox Parts
Parts Index
- 2 5/16-18 x 1/2 Hex Bolt-Grade 5 - (Qty 4)
- 3 5/16 USS Flat Washer Zinc - (Qty 4)
- 4 PTO Guard - (Qty 1)
- 5 Series 4 PTO Shaft-Shear Pin - (Qty 1)
- 7 5/8 Center Lock Nut GrC-Fine - (Qty 4)
- 9 4' Rotary Cutter Blade - (Qty 2)
- 10 Blade Bolt Only - (Qty 2)
- 11 Blade Bolt Lockwasher - (Qty 2)
- 12 Blade Nut Only - (Qty 2)
- 13 1" Castle Nut-Stump Jumper - (Qty 1)
- 14 3/16 x2 1/4 Cotter Pin-Stump Jumper - (Qty 1)
- 15 RC-30 Gearbox Shear Pin - (Qty 1)
- 16 Series 4 PTO Shaft-Slip Clutch - (Qty 1)
13 Results
