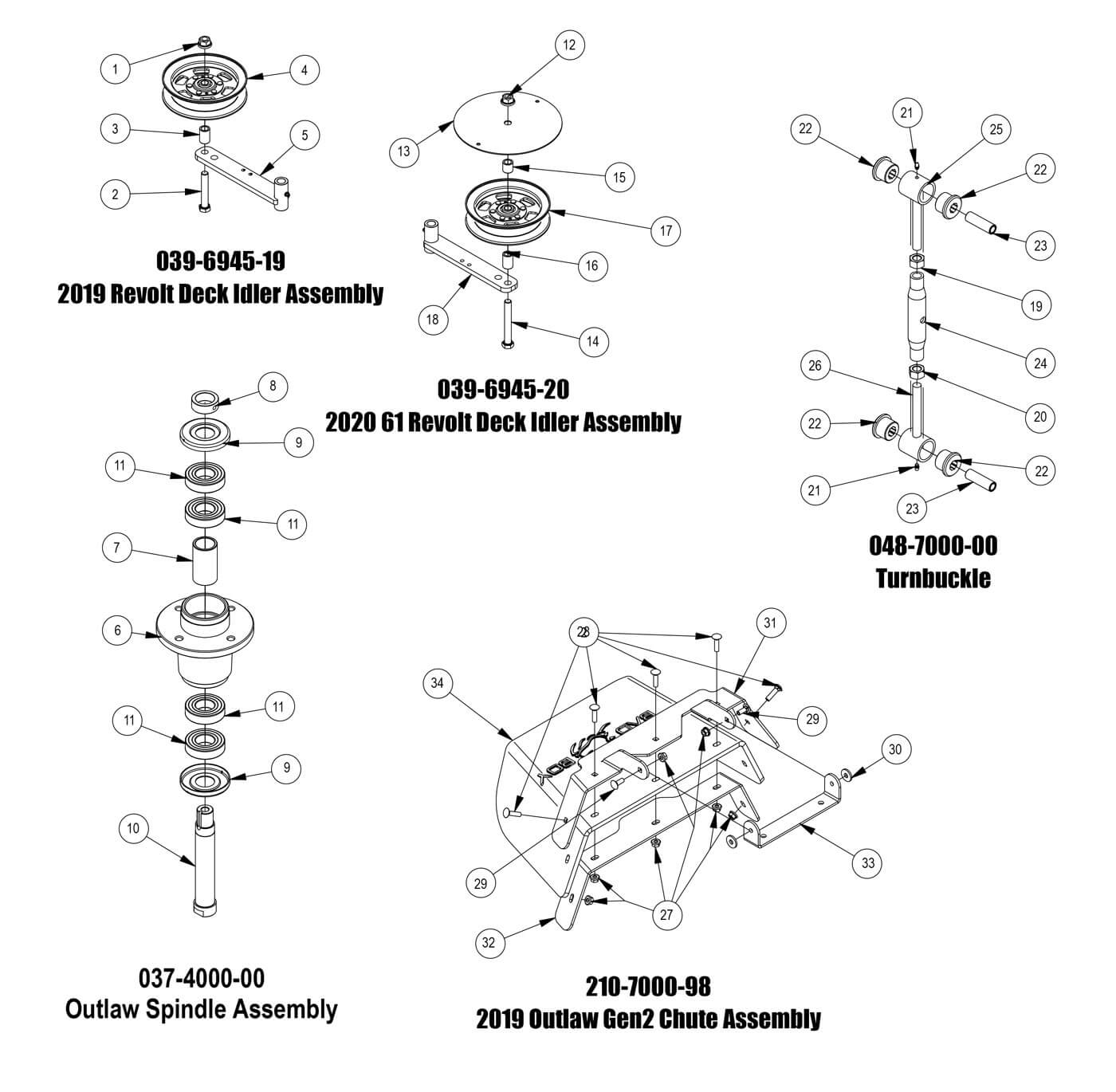

48-61" Deck Subassemblies
Parts Index
- 1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 2 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 3 .502x.750x1.130 Length Spacer - (Qty 1)
- 4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 5 Idler Bracket - (Qty 1)
- 6 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 7 2015 Spindle Spacer - (Qty 1)
- 8 Collar Spacer - Top of Spindle - (Qty 1)
- 9 Dust Cover for 037-8000-00 - - (Qty 2)
- 10 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 11 OBSOLETE USE 037-6029-00 - (Qty 4)
- 12 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 13 61" Revolt Idler Pulley Cover--Black - (Qty 1)
- 14 1/2-13 X 3.75 Hex Bolt-Grade 5 - (Qty 1)
- 15 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 16 .502x.750x1.130 Length Spacer - (Qty 1)
- 17 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 18 Idler Bracket - (Qty 1)
- 19 11/16-12 Hex Nut-2015 Toplink - (Qty 1)
- 20 11/16-12 Lefthand Hex Nut-Topl - (Qty 1)
- 21 1/4 Drive-in Grease Fitting - (Qty 2)
- 22 Bushing-2015 Outlaw Toplink - (Qty 4)
- 23 Sleeve-2015 Outlaw Toplink - (Qty 2)
- 24 2015 Outlaw Toplink Body - (Qty 1)
- 25 2015 Outlaw Toplink RH End - (Qty 1)
- 26 2015 Outlaw Toplink LH End - (Qty 1)
- 27 5/16-18 Nylon Flange Nut - (Qty 7)
- 28 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 29 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 30 .360 ID Plastic Washer - (Qty 2)
- 31 Chute Bracket (upper) - (Qty 1)
- 32 Chute Bracket (lower) - (Qty 1)
- 33 Chute Hanger - (Qty 1)
- 34 Discharge Chute (Rubber Component) - (Qty 1)
34 Results
