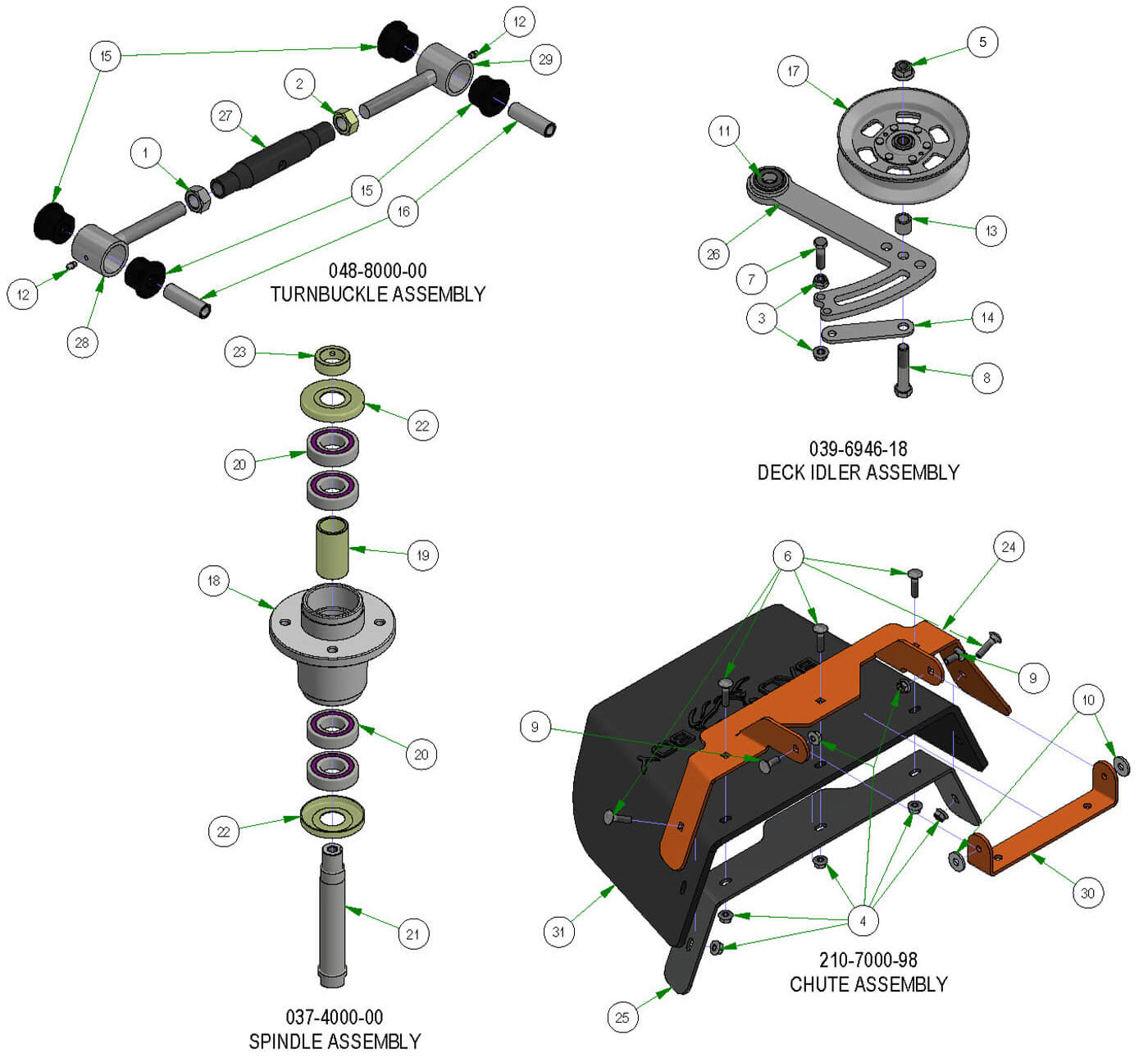

Deck Subassemblies
Parts Index
- 3 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 4 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 7)
- 5 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 6 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 7 3/8 x 1 1/2 Bolt - (Qty 1)
- 8 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 9 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 10 .360 ID Plastic Washer - (Qty 2)
- 11 Ball Bearing w/clip; 99502H-NR; 5/8" Bore - (Qty 2)
- 12 1/4-28 Threaded Grease Fitting - (Qty 2)
- 13 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 14 Belt Tensioner Retainer Plate--Plated - (Qty 1)
- 15 Belt Tensioner Retainer Plate--Plated - (Qty 4)
- 16 Sleeve-2015 Outlaw Toplink - (Qty 2)
- 17 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 18 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 19 2015 Spindle Spacer - (Qty 1)
- 20 OBSOLETE USE 037-6029-00 - (Qty 4)
- 21 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 22 Dust Cover for 037-8000-00 - - (Qty 2)
- 23 Collar Spacer - Top of Spindle - (Qty 1)
- 24 Chute Bracket (upper) - (Qty 1)
- 25 Chute Bracket (lower) - (Qty 1)
- 28 Turnbuckle End Right-Handed Thread - (Qty 1)
- 29 Turnbuckle End Left-Handed Thread - (Qty 1)
- 30 Chute Hanger - (Qty 1)
- 31 Discharge Chute (Rubber Component) - (Qty 1)
