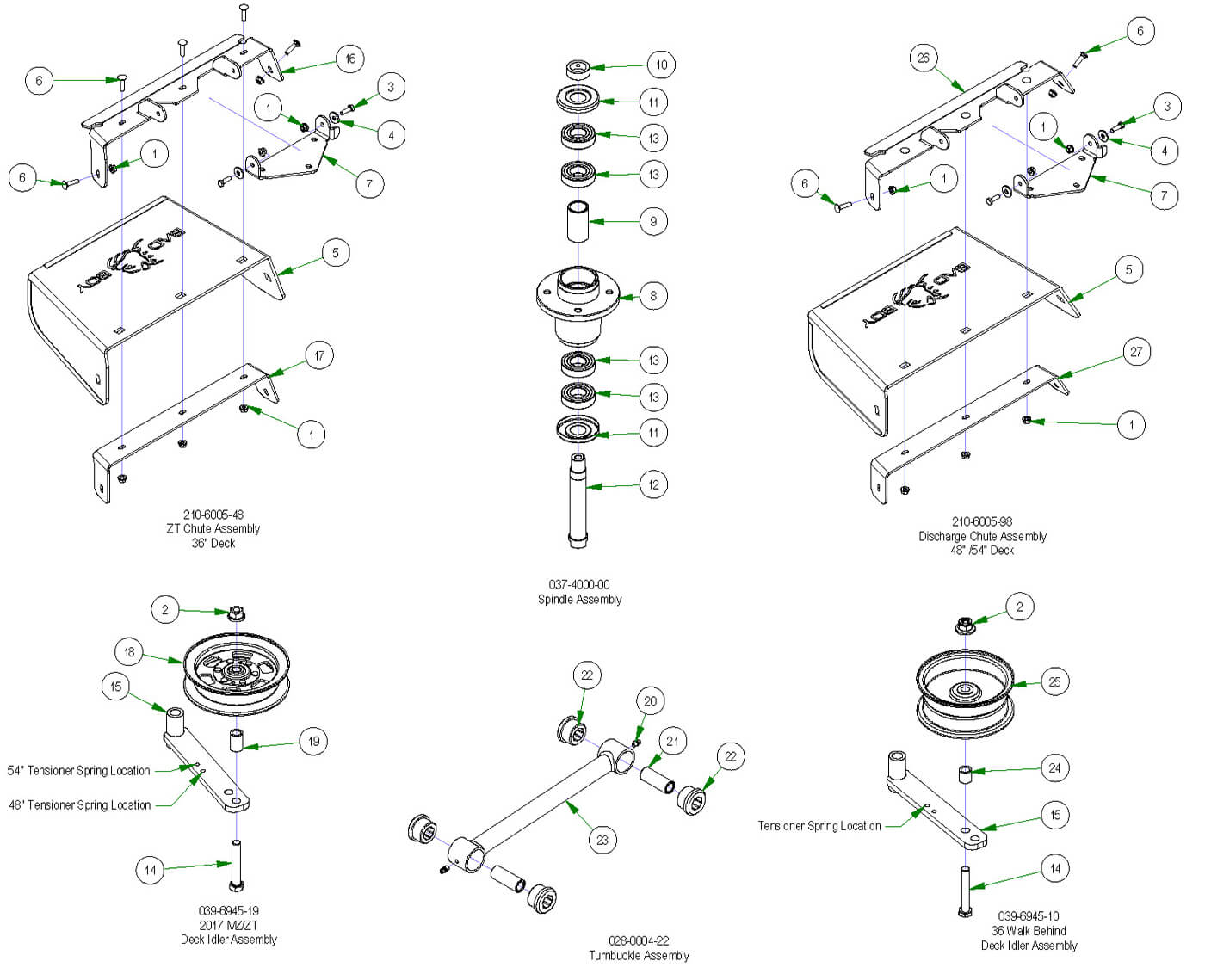

Deck Subassemblies
Parts Index
- 1 5/16-18 Nylon Flange Nut - (Qty 14)
- 2 1/2-13 Nylon Insert Flange Nut - (Qty 2)
- 3 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 4)
- 4 .360 ID Plastic Washer - (Qty 4)
- 5 Discharge Chute (Rubber Component) - (Qty 2)
- 6 5/16-18 X 1-1/4 Carriage Bolt - (Qty 10)
- 7 Discharge Chute Hanger-Deck - (Qty 2)
- 8 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 9 2015 Spindle Spacer - (Qty 1)
- 10 Collar Spacer - Top of Spindle - (Qty 1)
- 11 Dust Cover for 037-8000-00 - - (Qty 2)
- 12 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 13 OBSOLETE USE 037-6029-00 - (Qty 4)
- 14 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 2)
- 15 Idler Bracket - (Qty 2)
- 16 48/52 Discharge Top Bracket - (Qty 1)
- 17 48/52 Discharge Lower Bracket - (Qty 1)
- 18 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 19 .502x.750x1.130 Length Spacer - (Qty 1)
- 20 1/4-28 Threaded Grease Fitting - (Qty 2)
- 21 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 22 2018 Maverick Topllink Bushing - (Qty 4)
- 24 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 25 Double Bearing Flat Idler - (Qty 1)
- 26 60 Discharge Chute Upper - (Qty 1)
- 27 60 Discharge Chute Upper - (Qty 1)
26 Results
$0.00
Call us to place an order for this part.
