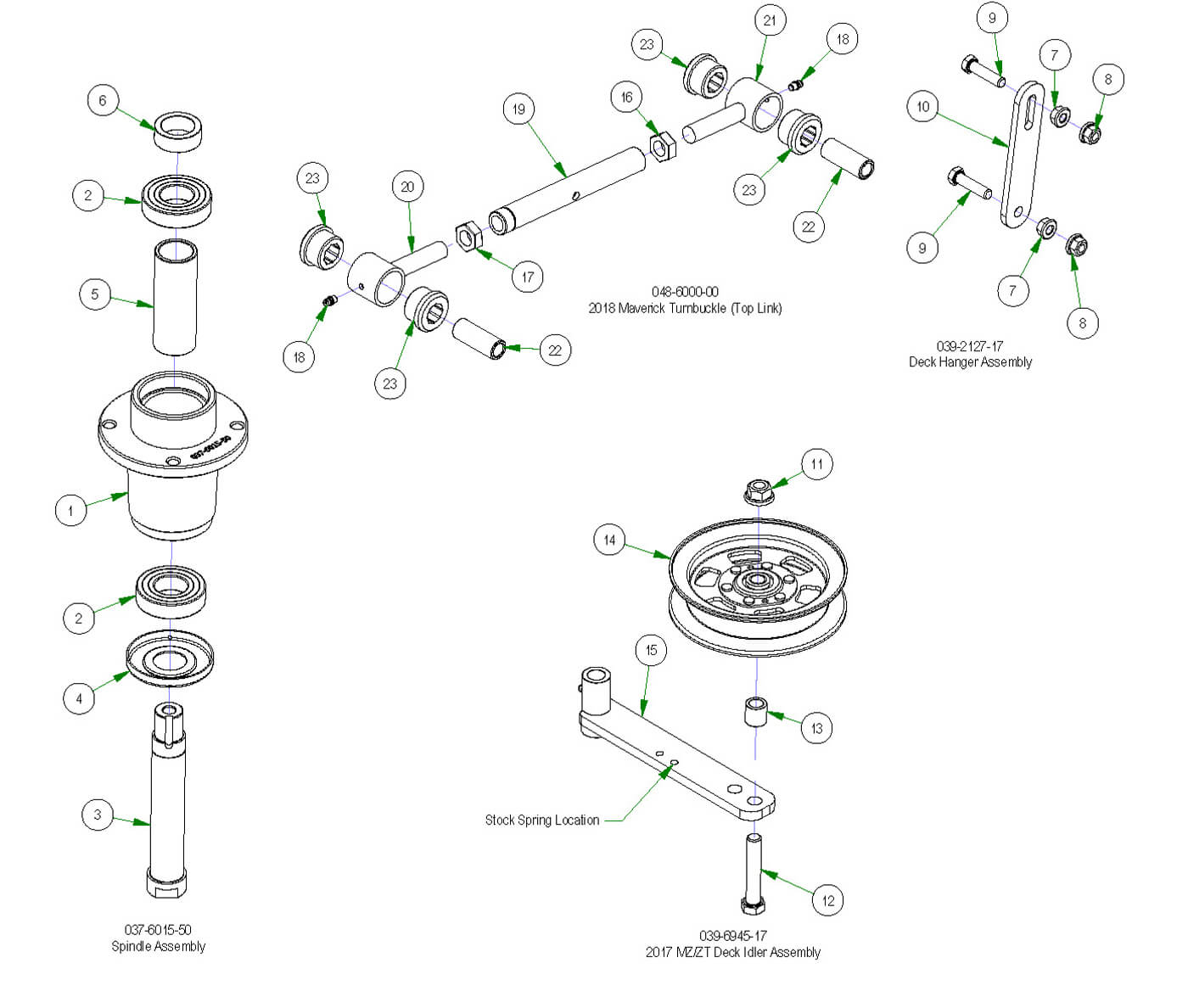

Deck Subassemblies
Parts Index
- 1 Aluminum Spindle Housing-2010 - (Qty 1)
- 2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 4 Dust Cover for 037-8000-00 - - (Qty 1)
- 5 Tube Spacer for Spindle Shaft - (Qty 1)
- 6 Collar Spacer - Top of Spindle - (Qty 1)
- 7 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 8 3/8 Nylock Flange Nut - (Qty 2)
- 9 3/8 x 1 1/2 Bolt - (Qty 2)
- 10 Deck hanger for 039-2127-17 - (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 12 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 13 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 15 Idler Bracket - (Qty 1)
- 16 Nut, 5/8-18 RH - (Qty 1)
- 17 Nut, 5/8-18 LH - (Qty 1)
- 18 1/4-28 Threaded Grease Fitting - (Qty 2)
- 19 2018 Maverick Toplink Body - (Qty 1)
- 20 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 21 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 22 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 23 2018 Maverick Topllink Bushing - (Qty 4)
23 Results
$0.00
Call us to place an order for this part.
