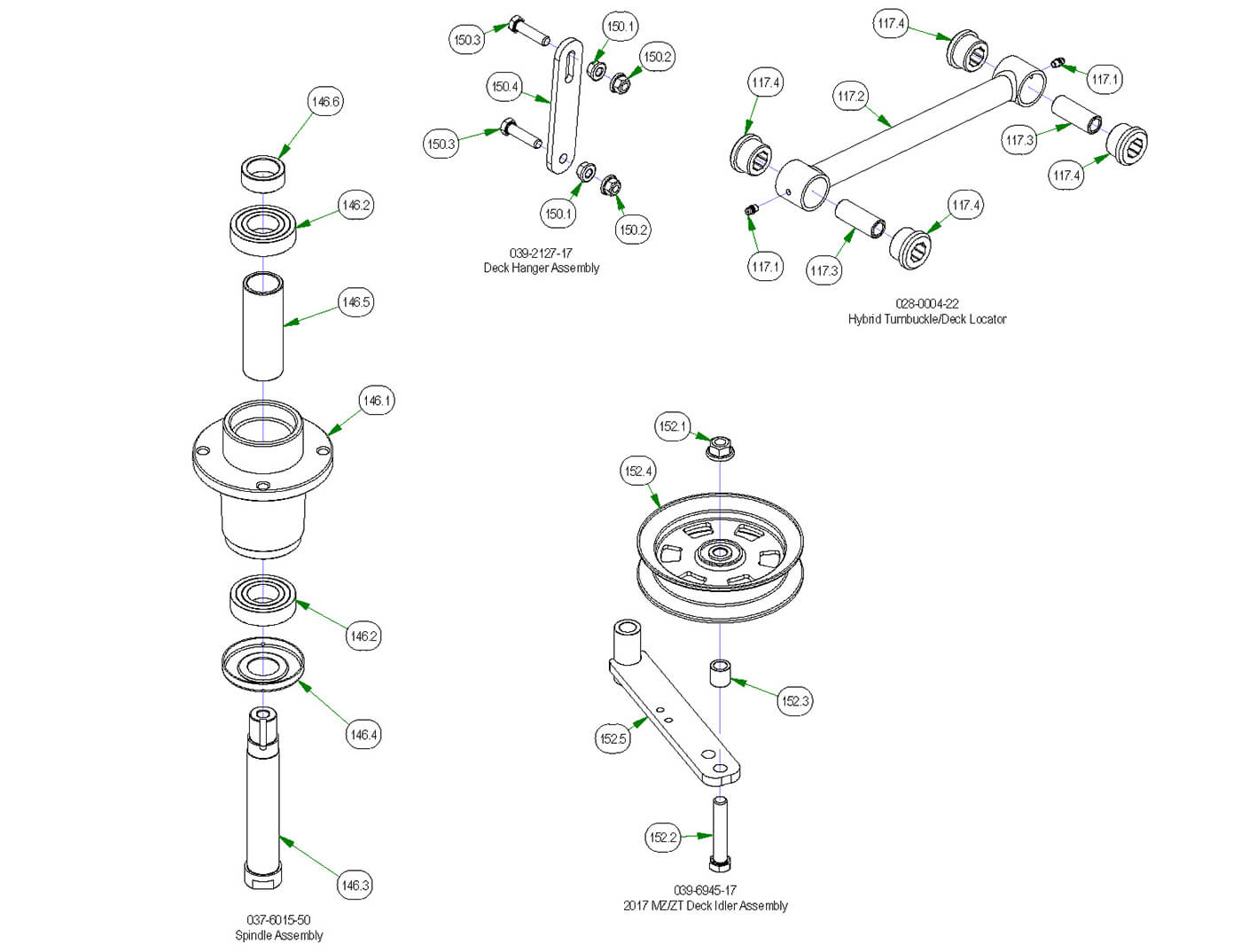

Deck Sub Assemblies
Parts Index
- 117 Hybrid Turnbuckle - (Qty 2)
- 117.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 117.3 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 117.4 2018 Maverick Topllink Bushing - (Qty 4)
- 146 Spindle-Aluminum - (Qty 3)
- 146.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 146.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 146.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 146.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 146.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 146.6 Collar Spacer - Top of Spindle - (Qty 1)
- 150 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 150.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 150.2 3/8 Nylock Flange Nut - (Qty 2)
- 150.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 150.4 Deck hanger for 039-2127-17 - (Qty 1)
- 152 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 152.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 152.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 152.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 152.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 152.5 Idler Bracket - (Qty 1)
