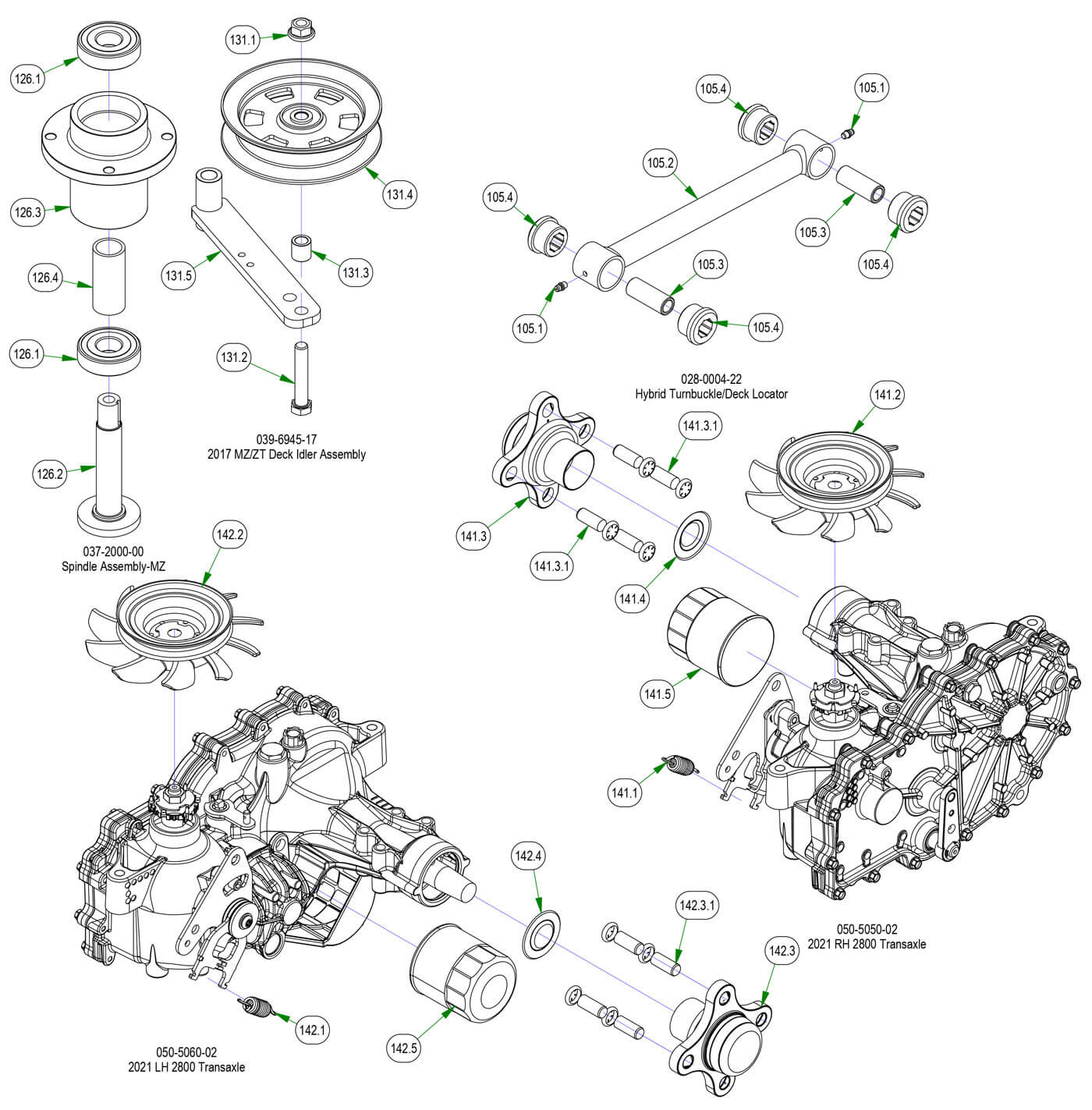

Deck Subassemblies
Parts Index
- 105 Actuator Bar (Front) - (Qty 2)
- 105.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 105.3 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 105.4 2018 Maverick Topllink Bushing - (Qty 4)
- 126 Spindle Assembly-Magnum Models - (Qty 3)
- 126.1 MZ Spindle Bearing - (Qty 2)
- 126.2 mz spindle shaft - (Qty 1)
- 126.3 MZ Spindle Housing - (Qty 1)
- 126.4 MZ Spindle Spacer-Component - (Qty 1)
- 131 2017 MZ/ZT Deck Idler Assembly - (Qty 2)
- 131.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 131.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 131.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 131.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 131.5 Idler Bracket - (Qty 1)
- 141 2021 RH 2800 Transaxle - (Qty 1)
- 141.1 Gold Transaxle Spring - (Qty 1)
- 141.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit - (Qty 1)
- 141.3 ZT Transaxle Wheel Hub - (Qty 1)
- 141.3.1 Transaxle Wheel Studs/ Drum Brake Studs - (Qty 4)
- 141.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) - (Qty 1)
- 141.5 ZT Hydraulic Filter - (Qty 1)
- 142 2021 LH 2800 Transaxle - (Qty 1)
- 142.1 Gold Transaxle Spring - (Qty 1)
- 142.2 2021 ZT/Maverick Transaxle Fan/Pulley Kit - (Qty 1)
- 142.3 ZT Transaxle Wheel Hub - (Qty 1)
- 142.3.1 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) - (Qty 4)
- 142.4 2021 ZT/Maverick Transaxle Seal Kit (ZT-2800) - (Qty 1)
- 142.5 ZT Hydraulic Filter - (Qty 1)
