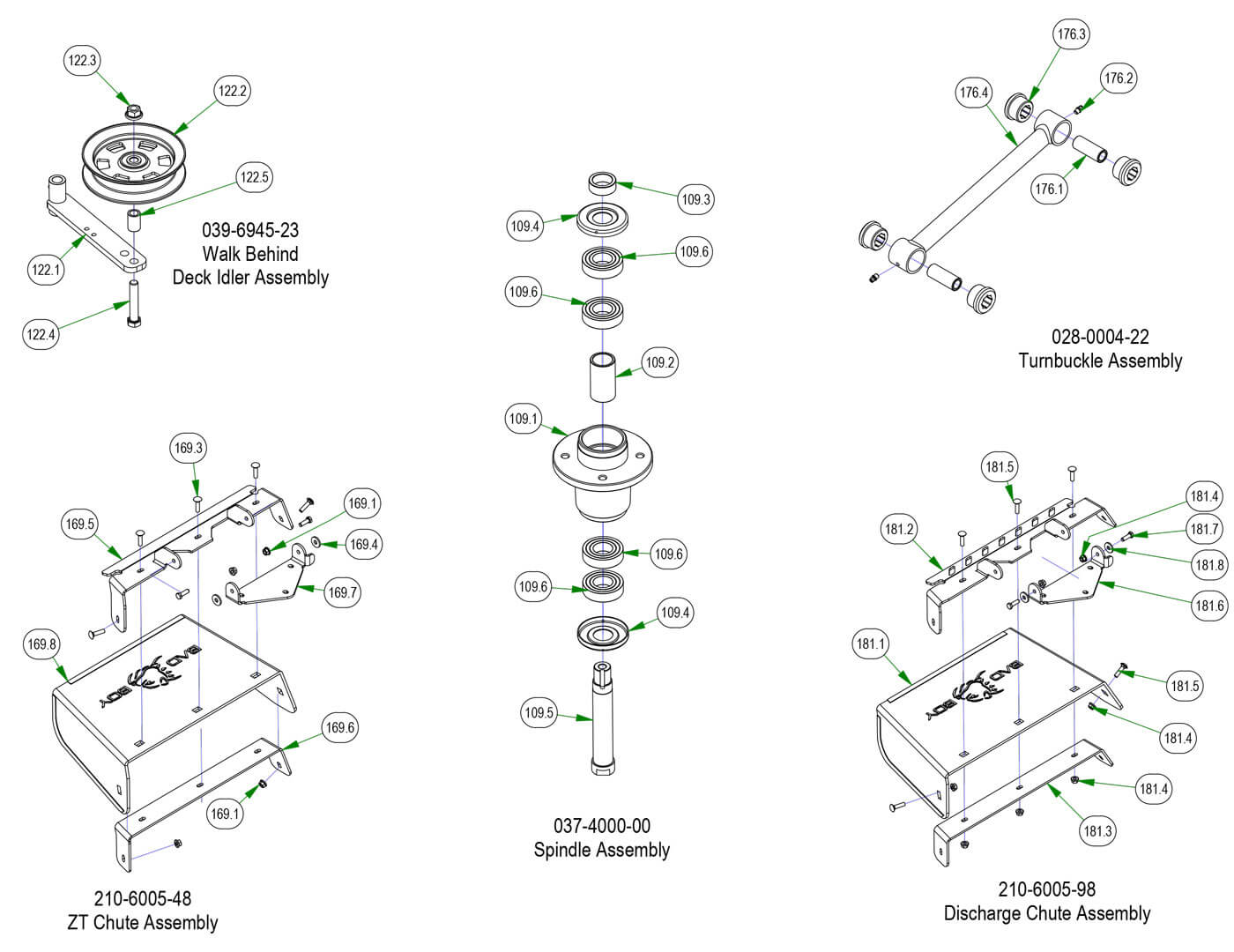

Deck Subassemblies
Parts Index
- 109 Commercial Cast Iron Spindle - (Qty 8)
- 109.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 109.2 2015 Spindle Spacer - (Qty 1)
- 109.3 Collar Spacer - Top of Spindle - (Qty 1)
- 109.4 Dust Cover for 037-8000-00 - - (Qty 2)
- 109.5 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 109.6 OBSOLETE USE 037-6029-00 - (Qty 4)
- 122 2023 Revolt deck idler assembly - (Qty 3)
- 122.1 Idler Bracket - (Qty 1)
- 122.2 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 122.3 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 122.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 122.5 .502x.750x1.130 Length Spacer - (Qty 1)
- 169 2013 48" ZT/Chute Assembly - (Qty 2)
- 169.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 169.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 169.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 169.4 .360 ID Plastic Washer - (Qty 2)
- 169.5 48/52 Discharge Top Bracket - (Qty 1)
- 169.6 48/52 Discharge Lower Bracket - (Qty 1)
- 169.7 Discharge Chute Hanger-Deck - (Qty 1)
- 169.8 Discharge Chute (Rubber Component) - (Qty 1)
- 176 Hybrid Turnbuckle - (Qty 2)
- 176.1 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 176.2 1/4-28 Threaded Grease Fitting - (Qty 2)
- 176.3 2018 Maverick Topllink Bushing - (Qty 4)
- 181 2017 54"/60" ZT/Mav Chute Assembly - (Qty 1)
- 181.1 Discharge Chute (Rubber Component) - (Qty 1)
- 181.2 60 Discharge Chute Upper - (Qty 1)
- 181.3 60 Discharge Lower Bracket - (Qty 1)
- 181.4 5/16-18 Nylon Flange Nut - (Qty 7)
- 181.5 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 181.6 Discharge Chute Hanger-Deck - (Qty 1)
- 181.7 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 181.8 .360 ID Plastic Washer - (Qty 2)
- 182 10mm Damper Ball Stud- - (Qty 1)
- 183 3/8-16 x 5 Hex Bolt - Grade 5 - (Qty 2)
- 184 3/8 USS Flat Washer Zinc - (Qty 2)
- 185 2023 4' & 5' Striping Kit Plate--Orange - (Qty 3)
- 186 1/4 USS Flat Washer Zinc - (Qty 2)
- 187 24 inch Black Cable - MZ/ZT - (Qty 1)
41 Results
#037-4000-00 $291.91
REPLACES 037-4000-50, 037-8000-00, 037-8000-50
Qty Used: 8
