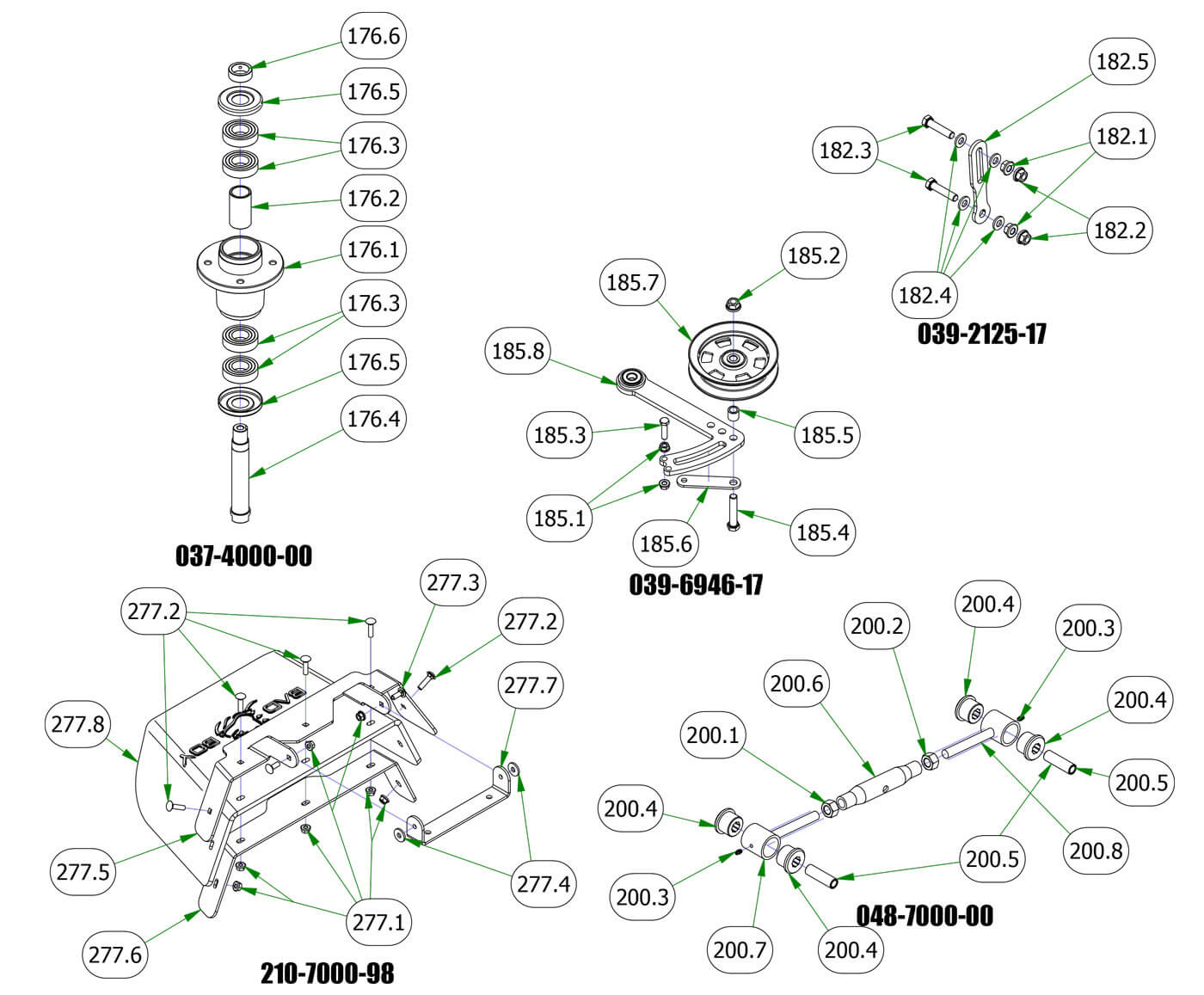

Deck Subassemblies
Parts Index
- 176 Commercial Cast Iron Spindle - (Qty 6)
- 176.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 176.2 2015 Spindle Spacer - (Qty 1)
- 176.6 Collar Spacer - Top of Spindle - (Qty 1)
- 176.5 Dust Cover for 037-8000-00 - - (Qty 2)
- 176.4 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 176.3 OBSOLETE USE 037-6029-00 - (Qty 4)
- 182 Outlaw/Extreme/XP Deck Hanger Assy - (Qty 4)
- 182.5 OBSOLETE USE 039-2125-17 - (Qty 1)
- 182.2 1/2-13 Nylon Insert Flange Nut - (Qty 2)
- 182.1 1/2-13 Hex Fange Nuts Zinc w/ - (Qty 2)
- 182.3 1/2-13 X 2-1/4 GR 5 Hex Bolts - (Qty 2)
- 182.4 .505 ID X 1 OD X .128 THK Washer - (Qty 4)
- 185 2019 Renegade Deck Idler - (Qty 2)
- 185.8 Idler Bracket--Plated - (Qty 1)
- 185.7 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 185.6 Belt Tensioner Retainer Plate--Plated - (Qty 1)
- 185.5 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 185.2 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 185.4 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 185.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 185.3 3/8 x 1 1/2 Bolt - (Qty 1)
- 200 Toplink - (Qty 2)
- 200.6 2015 Outlaw Toplink Body - (Qty 1)
- 200.4 Bushing-2015 Outlaw Toplink - (Qty 4)
- 200.5 Sleeve-2015 Outlaw Toplink - (Qty 2)
- 200.8 2015 Outlaw Toplink LH End - (Qty 1)
- 200.7 2015 Outlaw Toplink RH End - (Qty 1)
- 200.3 1/4 Drive-in Grease Fitting - (Qty 2)
- 200.1 11/16-12 Hex Nut-2015 Toplink - (Qty 1)
- 200.2 11/16-12 Lefthand Hex Nut-Topl - (Qty 1)
- 277 R-Series, Revolt Chute Assembly - (Qty 2)
- 277.6 Chute Bracket (lower) - (Qty 1)
- 277.8 Discharge Chute (Rubber Component) - (Qty 1)
- 277.5 Chute Bracket (upper) - (Qty 1)
- 277.7 Chute Hanger - (Qty 1)
- 277.2 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 277.3 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 277.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 277.4 .360 ID Plastic Washer - (Qty 2)
40 Results
#037-4000-00 $291.91
REPLACES 037-4000-50, 037-8000-00, 037-8000-50
Qty Used: 6
$291.91
Quantity: Qty:
$0.00
Call us to place an order for this part.
