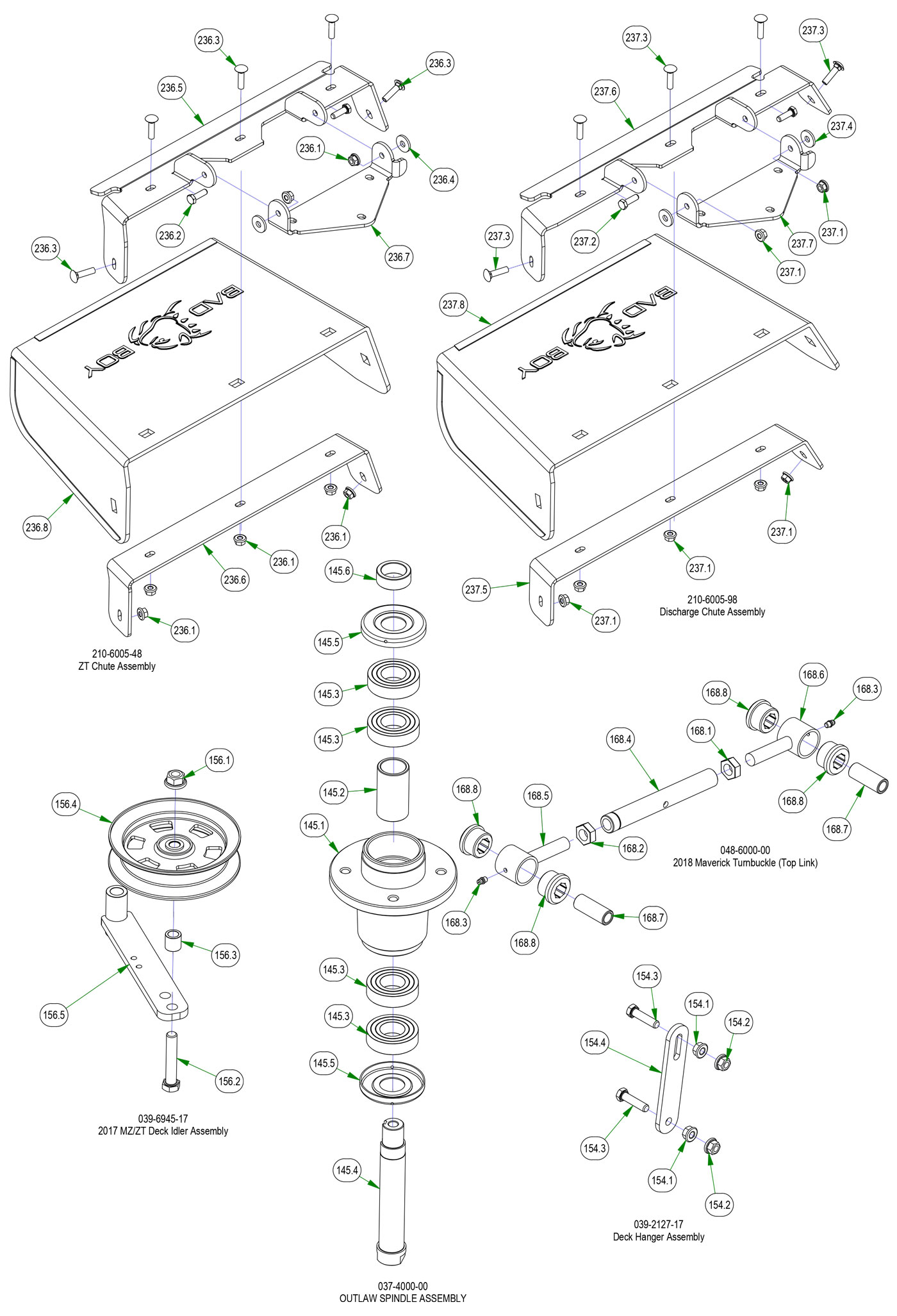

Deck Subassemblies
Parts Index
- 59 5/16-18 X 1-1/4 Carriage Bolt - (Qty 3)
- 108 2023 4' & 5' Striping Kit Plate--Orange - (Qty 1)
- 145 Commercial Cast Iron Spindle - (Qty 3)
- 145.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 145.2 2015 Spindle Spacer - (Qty 1)
- 145.3 OBSOLETE USE 037-6029-00 - (Qty 4)
- 145.4 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 145.5 Dust Cover for 037-8000-00 - - (Qty 2)
- 145.6 MZ/ZT Deck Hanger Assembly - (Qty 1)
- 154 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 154.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 154.2 3/8 Nylock Flange Nut - (Qty 2)
- 154.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 154.4 Deck hanger for 039-2127-17 - (Qty 1)
- 156 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 156.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 156.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 156.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 156.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 156.5 Idler Bracket - (Qty 1)
- 168 Toplink - (Qty 2)
- 168.1 Nut, 5/8-18 LH - (Qty 1)
- 168.2 Nut, 5/8-18 LH - (Qty 1)
- 168.3 1/4-28 Threaded Grease Fitting - (Qty 2)
- 168.4 2018 Maverick Toplink Body - (Qty 1)
- 168.5 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 168.6 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 168.7 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 168.8 2018 Maverick Topllink Bushing - (Qty 4)
- 202 2023 ZT Stripe Kit Rubber - (Qty 1)
- 236 2013 48" ZT/Chute Assembly - (Qty 1)
- 236.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 236.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 236.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 236.4 .360 ID Plastic Washer - (Qty 2)
- 236.5 48/52 Discharge Top Bracket - (Qty 1)
- 236.6 48/52 Discharge Lower Bracket - (Qty 1)
- 236.7 Discharge Chute Hanger-Deck - (Qty 1)
- 236.8 Discharge Chute (Rubber Component) - (Qty 1)
- 237 2017 54"/60" ZT/Mav Chute Assembly - (Qty 1)
- 237.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 237.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 237.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 237.4 .360 ID Plastic Washer - (Qty 2)
- 237.5 60 Discharge Lower Bracket - (Qty 1)
- 237.6 60 Discharge Chute Upper - (Qty 1)
- 237.7 Discharge Chute Hanger-Deck - (Qty 1)
- 237.8 Discharge Chute (Rubber Component) - (Qty 1)
48 Results
#037-4000-00 $291.91
REPLACES 037-4000-50, 037-8000-00, 037-8000-50
Qty Used: 3
$291.91
Quantity: Qty:
$0.00
Call us to place an order for this part.
