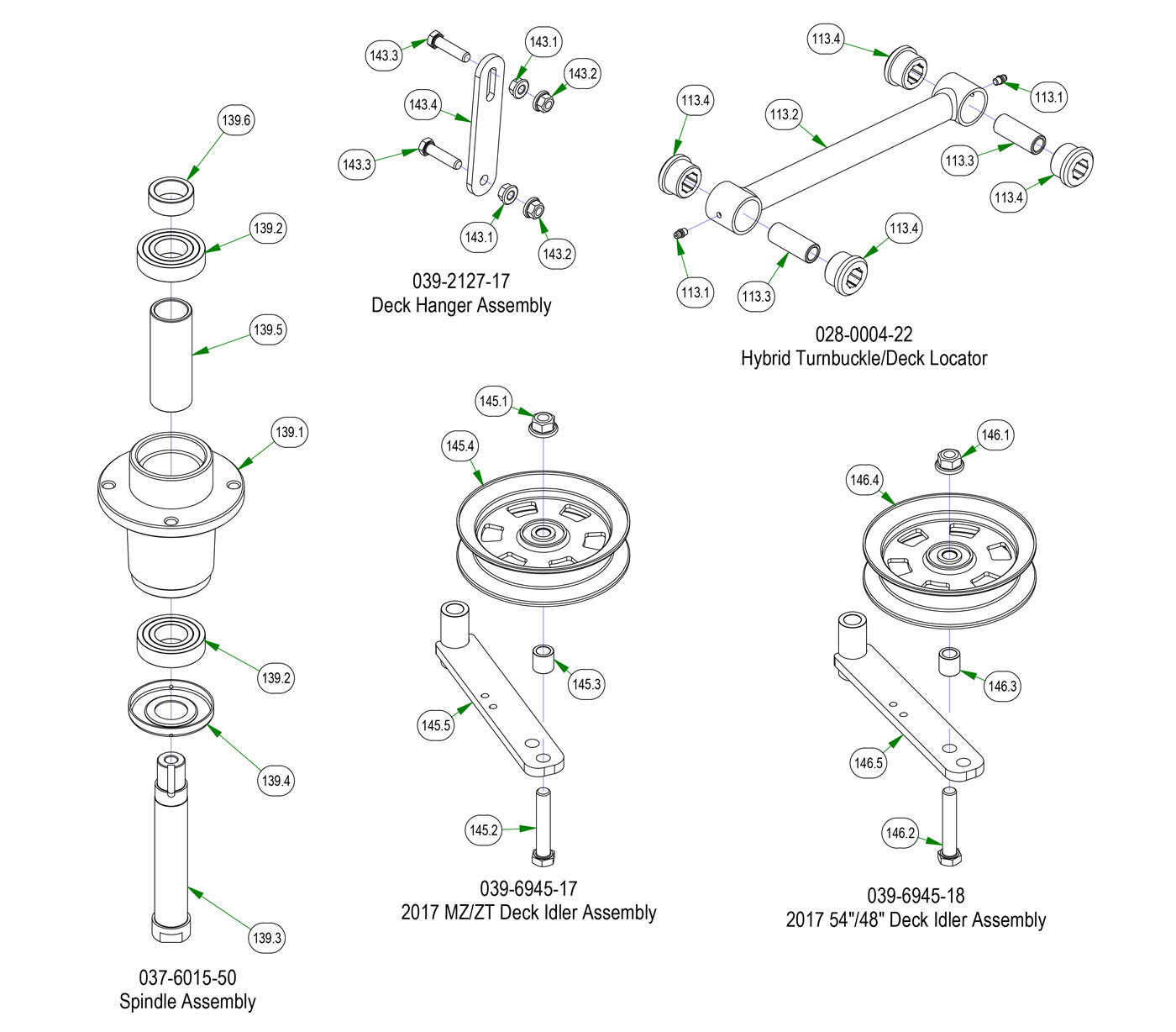

Deck Sub Assemblies
Parts Index
- 113 Hybrid Turnbuckle - (Qty 2)
- 113.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 113.3 2018 Maverick Topllink Bushing Sleeve - (Qty 22)
- 113.4 2018 Maverick Topllink Bushing - (Qty 4)
- 139 Spindle-Aluminum - (Qty 3)
- 139.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 139.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 139.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 139.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 139.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 139.6 Collar Spacer - Top of Spindle - (Qty 1)
- 143 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 143.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 143.2 3/8 Nylock Flange Nut - (Qty 2)
- 143.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 143.4 Deck hanger for 039-2127-17 - (Qty 1)
- 145 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 145.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 145.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 145.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 145.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 145.5 Idler Bracket - (Qty 1)
- 146 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 146.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 146.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 146.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 146.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 146.5 Idler Bracket - (Qty 1)
28 Results
$0.00
Call us to place an order for this part.
