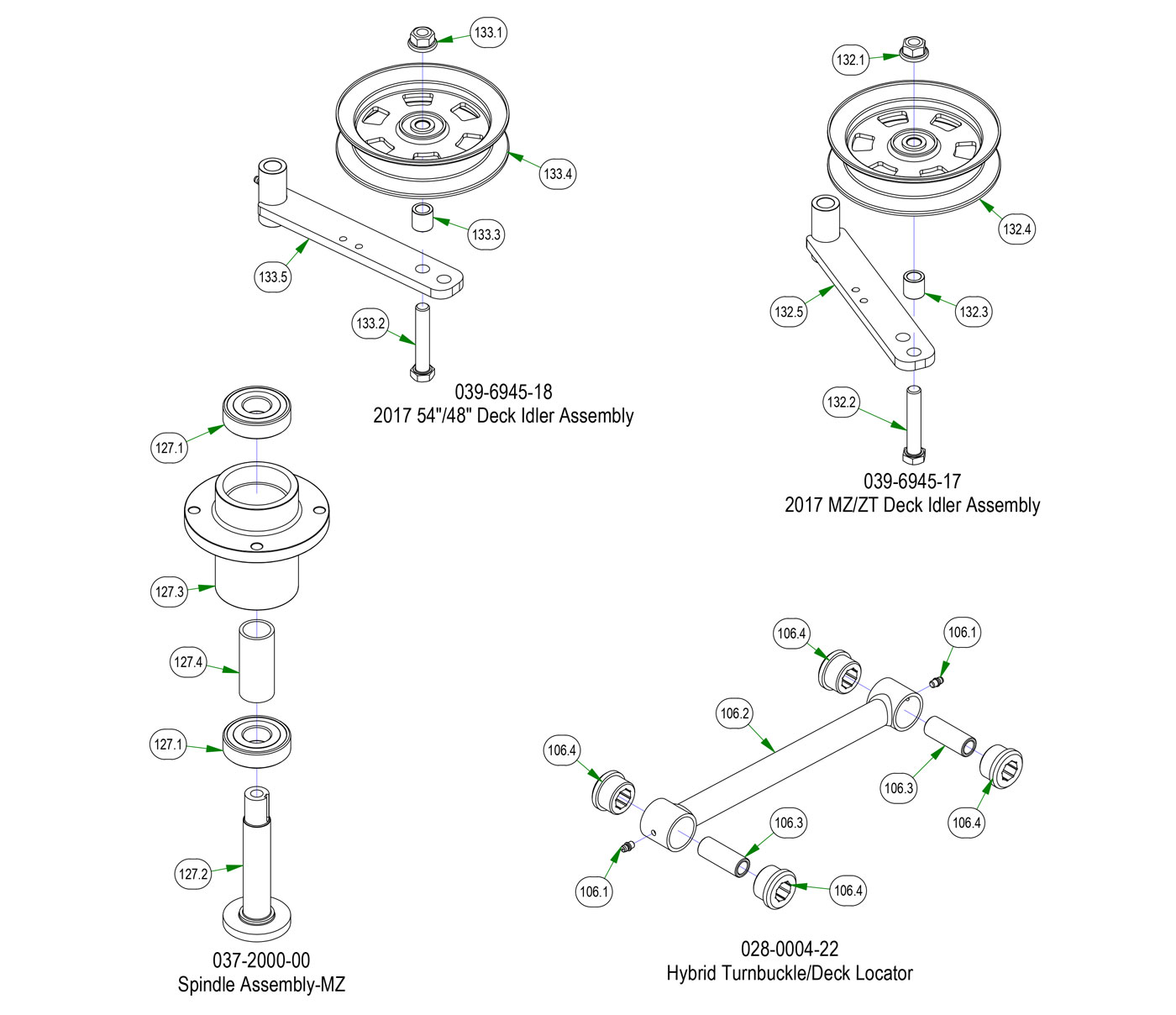

Deck Sub Assemblies
Parts Index
- 83 1/4 USS Flat Washer Zinc - (Qty 4)
- 91 2017 ZT Black Assembly 22x11-10 - (Qty 2)
- 106 Hybrid Turnbuckle - (Qty 2)
- 106.1 1/4-28 Threaded Grease Fitting - (Qty 2)
- 106.3 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 106.4 2018 Maverick Topllink Bushing - (Qty 4)
- 127 Spindle Assembly-Magnum Models - (Qty 3)
- 127.1 MZ Spindle Bearing - (Qty 2)
- 127.2 mz spindle shaft - (Qty 1)
- 127.3 MZ Spindle Housing - (Qty 1)
- 127.4 MZ Spindle Spacer-Component - (Qty 1)
- 132 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 132.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 132.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 132.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 132.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 132.5 Idler Bracket - (Qty 1)
- 133 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 133.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 133.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 133.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 133.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 133.5 Idler Bracket - (Qty 1)
23 Results
