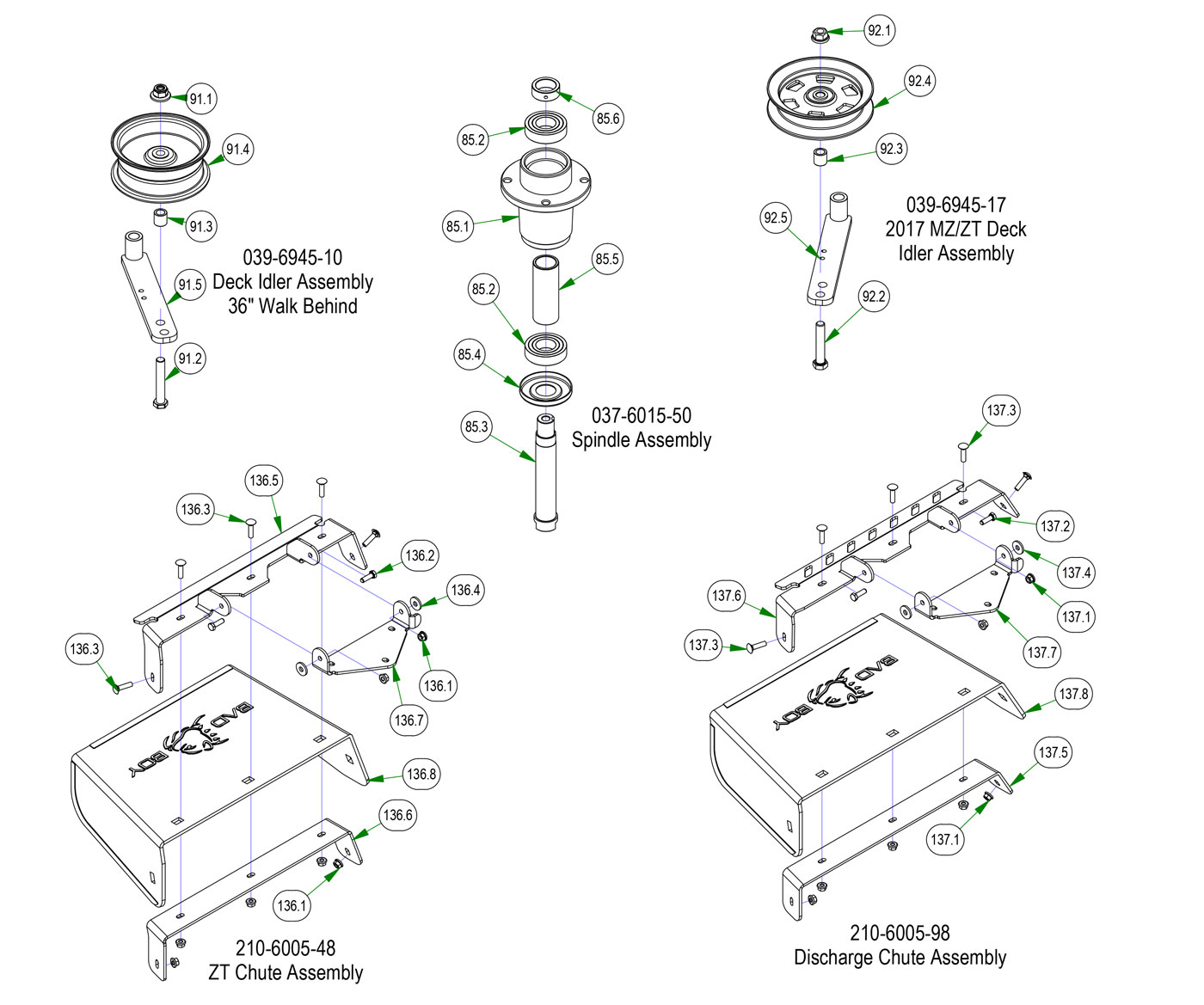

Deck Sub-Assemblies
Parts Index
- 85 Spindle-Aluminum - (Qty 3)
- 85.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 85.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 85.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 85.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 85.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 85.6 Collar Spacer - Top of Spindle - (Qty 1)
- 91 36" Walkbehind Deck Idler Assembly - (Qty 1)
- 91.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 91.2 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 91.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 91.4 Double Bearing Flat Idler - (Qty 1)
- 91.5 Idler Bracket - (Qty 1)
- 92 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 92.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 92.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 92.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 92.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 92.5 Idler Bracket - (Qty 1)
- 136 2013 48" ZT/Chute Assembly - (Qty 1)
- 136.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 136.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 136.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 136.4 .360 ID Plastic Washer - (Qty 2)
- 136.5 48/52 Discharge Top Bracket - (Qty 1)
- 136.6 48/52 Discharge Lower Bracket - (Qty 1)
- 136.7 Discharge Chute Hanger-Deck - (Qty 1)
- 136.8 Discharge Chute (Rubber Component) - (Qty 1)
- 137 2017 54"/60" ZT/Mav Chute Assembly - (Qty 1)
- 137.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 137.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 137.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 137.4 .360 ID Plastic Washer - (Qty 2)
- 137.5 60 Discharge Lower Bracket - (Qty 1)
- 137.6 60 Discharge Chute Upper - (Qty 1)
- 137.7 Discharge Chute Hanger-Deck - (Qty 1)
- 137.8 Discharge Chute (Rubber Component) - (Qty 1)
