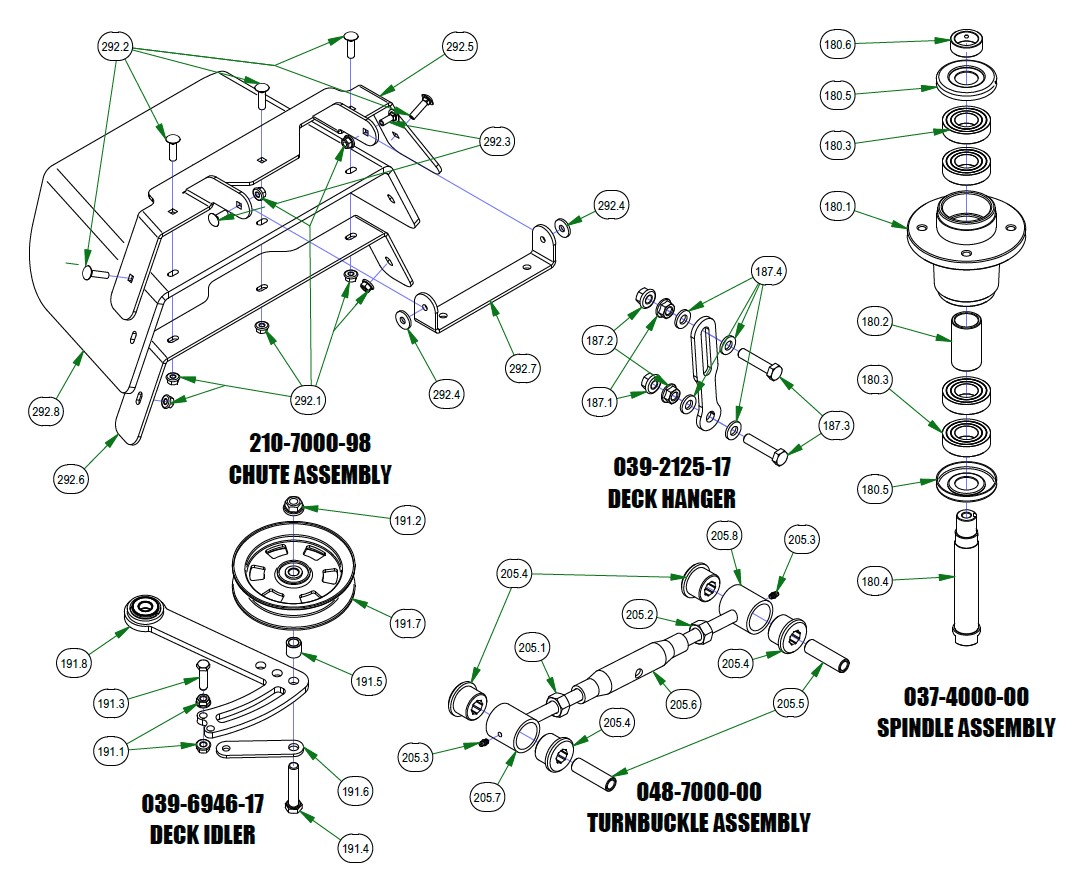

Deck Subassemblies

#037-4000-00 $291.91

Commercial Cast Iron Spindle

REPLACES 037-4000-50, 037-8000-00, 037-8000-50

Qty Used: 1

#037-4000-01 $119.36

2017 Outlaw/XP/Diesel Cast Iron Spindle Housing

OBSOLETE

Qty Used: 1

#037-4002-00 $6.62

2015 Spindle Spacer

Qty Used: 1

#037-6023-00 $0.00

OBSOLETE USE 037-6029-00

ZT Spindle Bearing 2004 & Up

Qty Used: 4

#037-6026-00 $78.29

Short Spindle Shaft for Locking Collar- No Grooved

Qty Used: 1

#037-8002-00 $10.99

Dust Cover for 037-8000-00 -

Qty Used: 2

#037-9050-00 $6.62

Collar Spacer - Top of Spindle

Qty Used: 1

#039-2125-17 $14.58

Outlaw/Extreme/XP Deck Hanger Assy

Replaces the 039-2125-00

Qty Used: 1

#013-5300-00 $0.79

1/2-13 Hex Fange Nuts Zinc w/

Qty Used: 2

#013-8050-00 $1.39

1/2-13 Nylon Insert Flange Nut

Qty Used: 2

#018-6037-00 $1.39

1/2-13 X 2-1/4 GR 5 Hex Bolts

Qty Used: 2

#019-8054-00 $0.69

.505 ID X 1 OD X .128 THK Washer

Qty Used: 4

#039-6946-17 $72.97

2019 Renegade Deck Idler

Qty Used: 1

#013-5201-00 $1.49

3/8-16 Hex Flange Nuts Zinc w/

Qty Used: 2

#013-8050-00 $1.39

1/2-13 Nylon Insert Flange Nut

Qty Used: 1

#018-6012-00 $0.79

3/8 x 1 1/2 Bolt

Qty Used: 1

#018-6036-00 $1.59

1/2-13 X 2-3/4 GR 5 Bolt Zinc

Qty Used: 1

#025-5203-00 $2.99

Spacer 3/4ODx1/2IDx0.75

Qty Used: 1

#026-0167-00 $24.99

Belt Tensioner Retainer Plate--Plated

Belt Tensioner Retainer Plate

Qty Used: 1

#033-8050-00 $33.16

2017 5" Split Idler Pulley-Tensioner Only

Qty Used: 1

#039-6946-00 $33.16

Idler Bracket--Plated

Idler Bracket

Qty Used: 1

#048-7000-00 $74.99

Toplink

OBSOLETE - Send 048-8000-00

Qty Used: 1

#013-0007-00 $2.69

11/16-12 Hex Nut-2015 Toplink

Qty Used: 1

#013-0008-00 $2.69

11/16-12 Lefthand Hex Nut-Topl

Qty Used: 1

#024-6034-00 $0.54

1/4 Drive-in Grease Fitting

Qty Used: 2

#032-2000-00 $9.99

Bushing-2015 Outlaw Toplink

Qty Used: 4

#032-2001-00 $3.97

Sleeve-2015 Outlaw Toplink

Qty Used: 2

#048-7020-00 $26.47

2015 Outlaw Toplink Body

Qty Used: 1

#048-7021-00 $29.13

2015 Outlaw Toplink RH End

Qty Used: 1

#048-7022-00 $29.13

2015 Outlaw Toplink LH End

Qty Used: 1

#210-7000-98 $159.22

R-Series, Revolt Chute Assembly

Qty Used: 1

#013-8049-00 $0.79

5/16-18 Nylon Flange Nut

Qty Used: 7

#018-4703-00 $0.69

5/16-18 X 1-1/4 Carriage Bolt

Qty Used: 5

#018-8066-00 $1.49

5/16 x 7/8 Carriage Bolt

Qty Used: 2

#019-6042-00 $0.79

.360 ID Plastic Washer

Qty Used: 2

#039-4893-00 $43.78

Chute Bracket (upper)

Qty Used: 1

#039-4894-00 $40.86

Chute Bracket (lower)

Qty Used: 1

#206-6018-00 $8.79

Chute Hanger

Qty Used: 1

#210-6025-00 $58.32

Discharge Chute (Rubber Component)

Qty Used: 1
