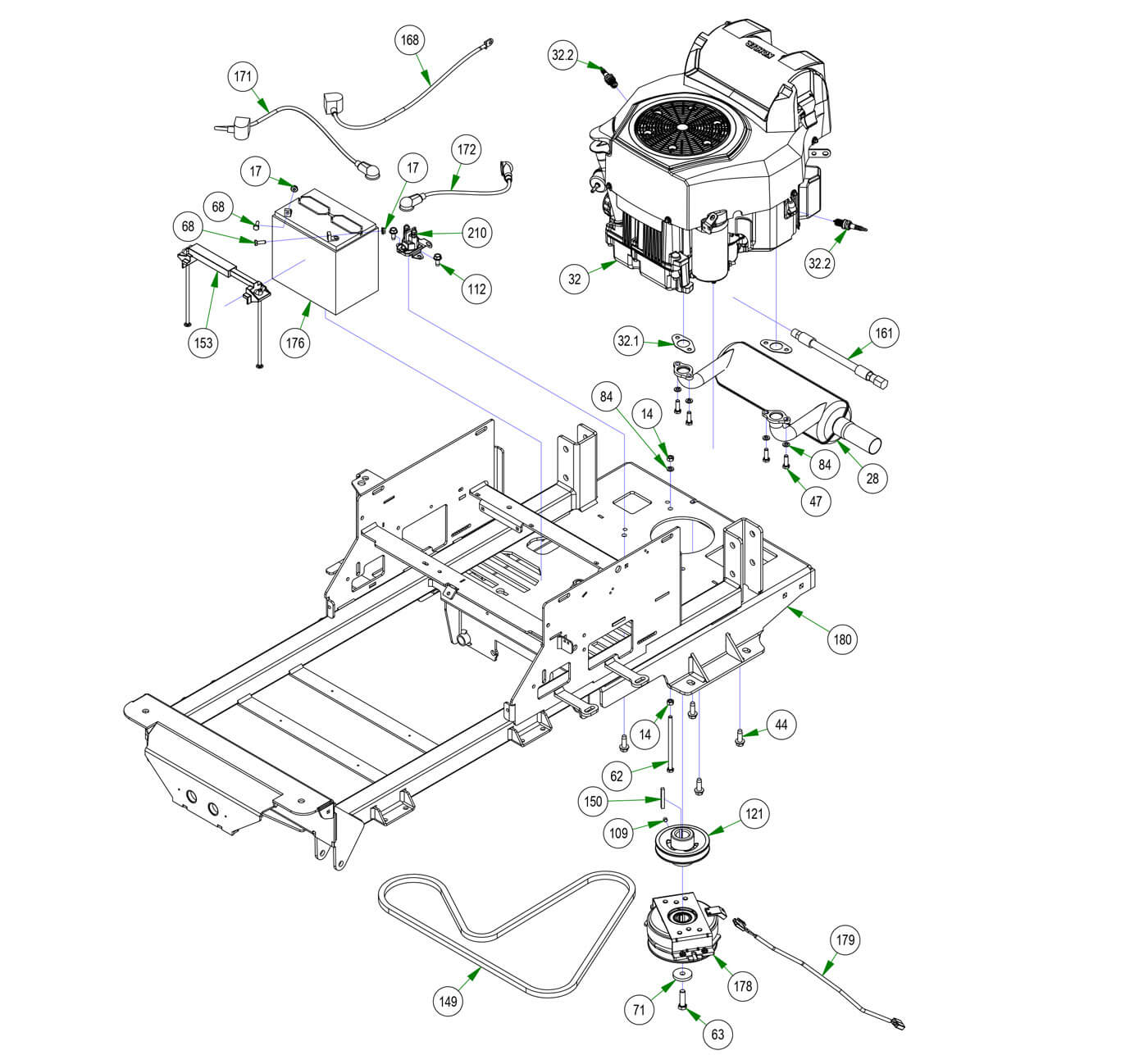

Kohler 747cc
Parts Index
- 14 5/16-18 Hex Nuts Zinc - (Qty 2)
- 17 1/4-20 Hex Flange Nuts Zinc w/ - (Qty 2)
- 28 2017 Kohler Exhaust MZ, AVEN, ZT, MAV, HD - (Qty 1)
- 32 25hp Kohler-2014 CZT, Oulaw - (Qty 1)
- 32.1 Exhaust Gaskets for 27,30 hp - (Qty 2)
- 32.2 Spark Plug-Kohler/Briggs - (Qty 2)
- 44 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 4)
- 47 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 4)
- 62 5/16-18 X 5-1/2 GR 5 Hex Bolt - (Qty 1)
- 63 7/16-20 x 1.5" Hex bolt GR 8 w/ Patch - (Qty 1)
- 68 1/4-20 X 3/4 GR 5 Hex Bolts - (Qty 2)
- 71 7/16 x 1-5/8 OD x 1/4 Thick Custom AISI 1018 CF ZC - (Qty 1)
- 84 5/16 Lock washer Zinc - (Qty 5)
- 109 5/16-24 x 1/4 Set Screw - (Qty 1)
- 112 5/16 x 3/4 Hex Washer Type F - (Qty 2)
- 121 4 3/4 Motor Pulley - (Qty 1)
- 149 Pump Belt-2018 Maverick 75.8"/2019 & Up Maverick - (Qty 1)
- 150 1/4 X 2 Square Key Stock - (Qty 1)
- 153 Battery Hold Down (Plastic) - (Qty 1)
- 161 Kohler Oil Drain Hose - (Qty 1)
- 168 24 inch Black Cable - MZ/ZT - (Qty 1)
- 171 24 Red Battery Cable - (Qty 1)
- 172 24 Red Battery Cable - (Qty 1)
- 176 Battery - All models except Renegade and Revolt - (Qty 1)
- 178 Clutch For 1-1/8" Shaft - (Qty 1)
- 179 Clutch Pigtail - (Qty 1)
- 210 Solenoid (752-1251-210HP) - (Qty 1)
