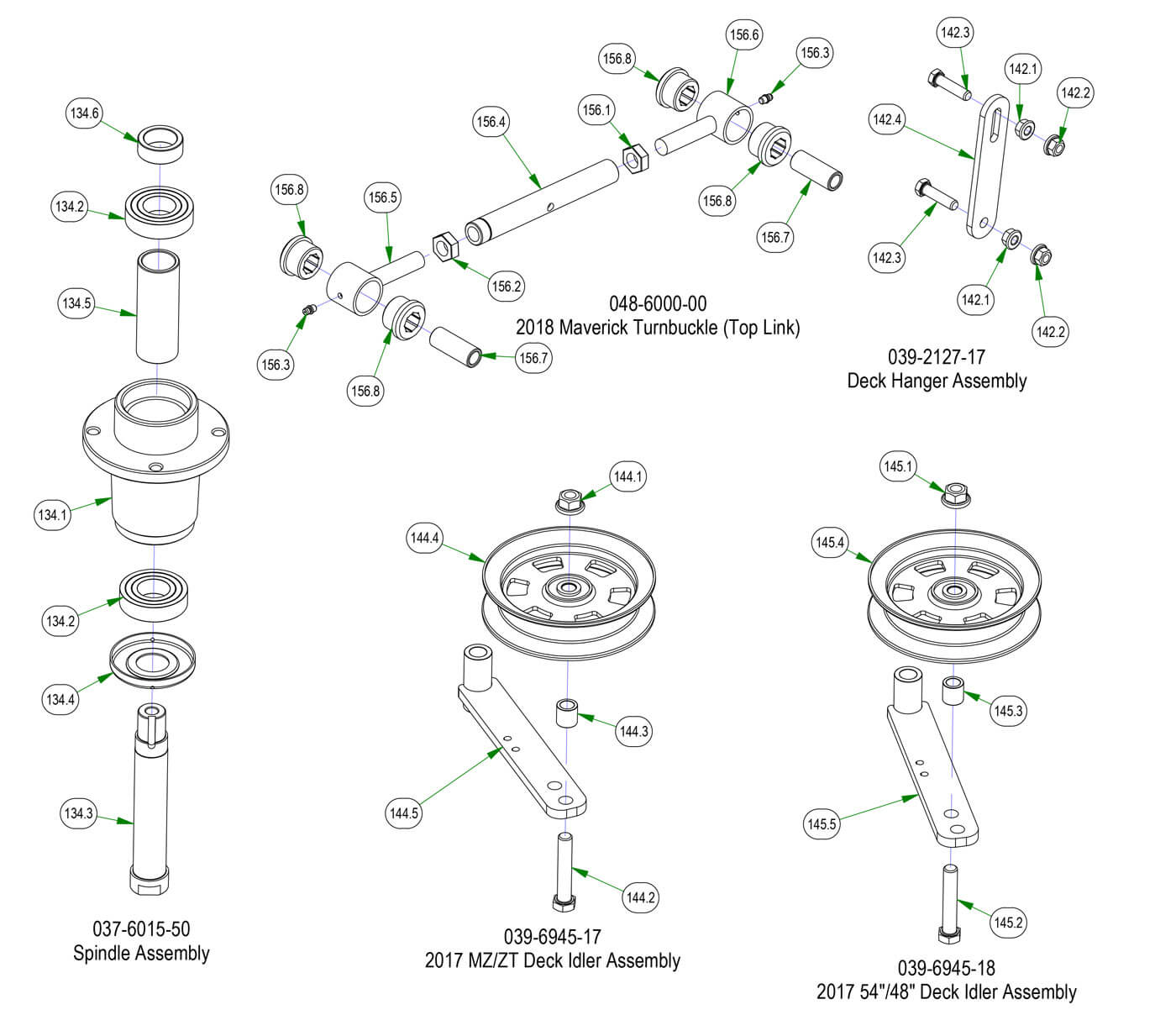

Deck Sub Assemblies - Spindle, Deck Hanger, etc
Parts Index
- 134 Spindle-Aluminum - (Qty 3)
- 134.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 134.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 134.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 134.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 134.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 134.6 Collar Spacer - Top of Spindle - (Qty 1)
- 142 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 142.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 142.2 3/8 Nylock Flange Nut - (Qty 2)
- 142.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 142.4 Deck hanger for 039-2127-17 - (Qty 1)
- 144 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 144.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 144.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 144.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 144.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 144.5 Idler Bracket - (Qty 1)
- 145 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 145.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 145.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 145.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 145.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 145.5 Idler Bracket - (Qty 1)
- 156 Toplink - (Qty 2)
- 156.1 Nut, 5/8-18 RH - (Qty 1)
- 156.2 Nut, 5/8-18 LH - (Qty 1)
- 156.3 1/4-28 Threaded Grease Fitting - (Qty 2)
- 156.4 2018 Maverick Toplink Body - (Qty 1)
- 156.5 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 156.6 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 156.7 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 156.8 2018 Maverick Topllink Bushing - (Qty 4)
