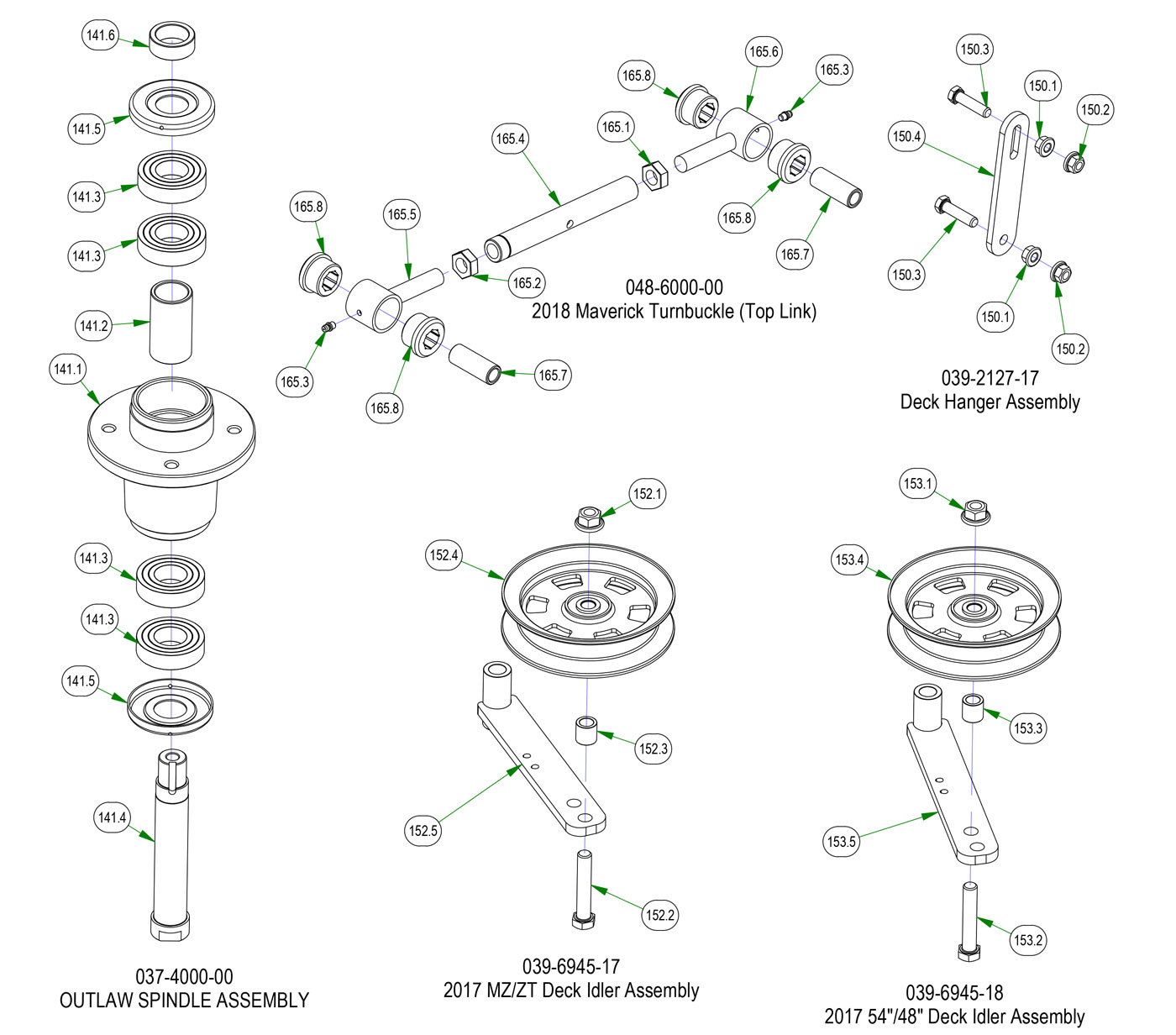

Deck Sub Assemblies - Spindle, Deck Hanger, etc
Parts Index
- 141 Commercial Cast Iron Spindle - (Qty 3)
- 141.1 2017 Outlaw/XP/Diesel Cast Iron Spindle Housing - (Qty 1)
- 141.2 2015 Spindle Spacer - (Qty 1)
- 141.3 OBSOLETE USE 037-6029-00 - (Qty 4)
- 141.4 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 141.5 Dust Cover for 037-8000-00 - - (Qty 2)
- 141.6 Collar Spacer - Top of Spindle - (Qty 1)
- 150 MZ/ZT Deck Hanger Assembly - (Qty 4)
- 150.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 150.2 3/8 Nylock Flange Nut - (Qty 2)
- 150.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 152 2017 MZ/ZT Deck Idler Assembly - (Qty 1)
- 152.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 152.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 152.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 152.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 152.5 Idler Bracket - (Qty 1)
- 153 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 153.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 153.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 153.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 153.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 153.5 Idler Bracket - (Qty 1)
- 165 Toplink - (Qty 2)
- 165.1 Nut, 5/8-18 RH - (Qty 1)
- 165.2 Nut, 5/8-18 LH - (Qty 1)
- 165.3 1/4-28 Threaded Grease Fitting - (Qty 2)
- 165.4 2018 Maverick Toplink Body - (Qty 1)
- 165.5 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 165.6 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 165.7 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 165.8 2018 Maverick Topllink Bushing - (Qty 4)
32 Results
#037-4000-00 $291.91
REPLACES 037-4000-50, 037-8000-00, 037-8000-50
Qty Used: 3
$291.91
Quantity: Qty:
$0.00
Call us to place an order for this part.
