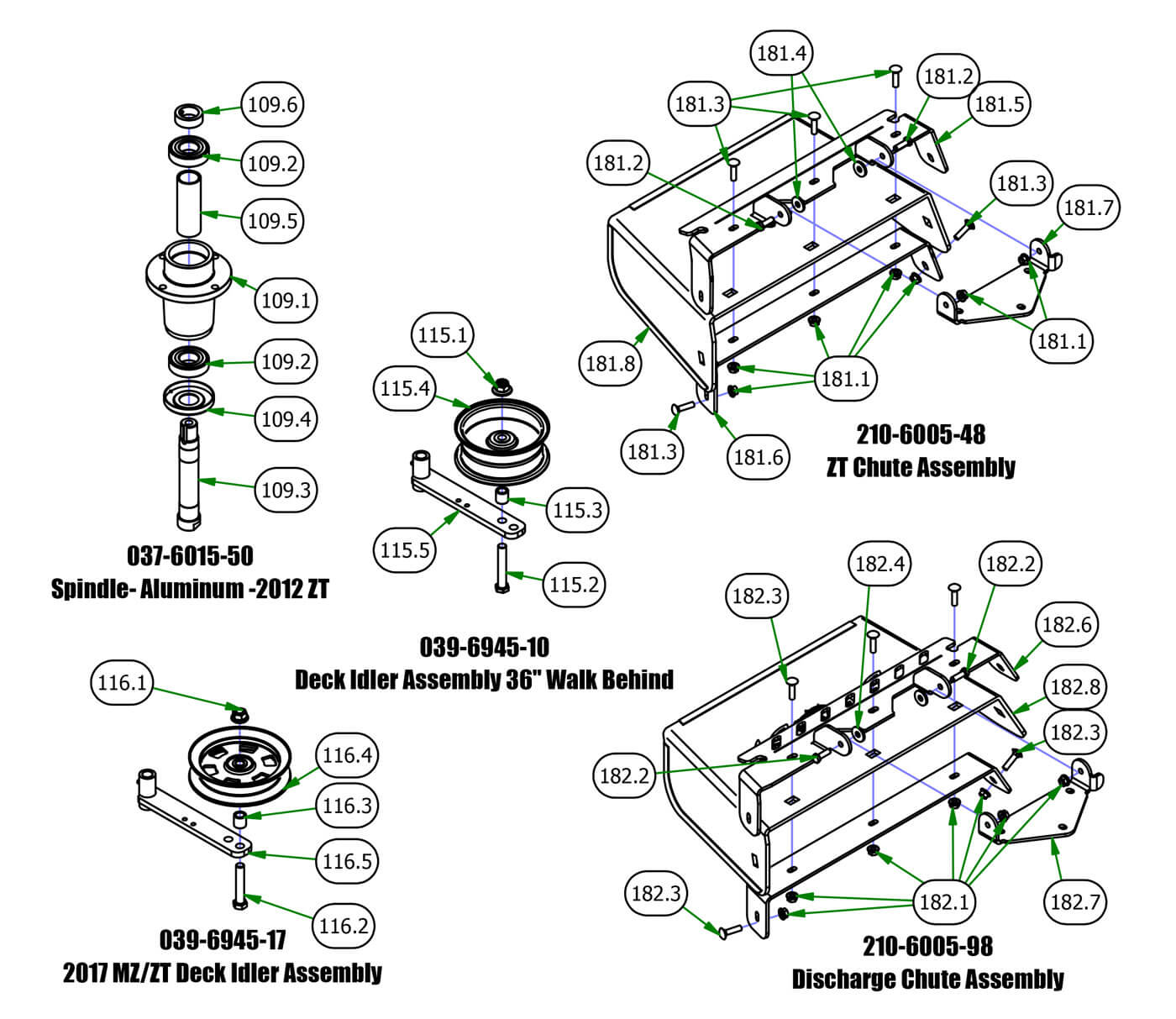

Deck Idler, Spindle, Chute
Parts Index
- 109.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 109.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 109.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 109.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 109.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 109.6 Tube Spacer for Spindle Shaft - (Qty 1)
- 115.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 115.2 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 115.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 115.4 Double Bearing Flat Idler - (Qty 1)
- 115.5 Idler Bracket - (Qty 1)
- 116.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 116.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 116.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 116.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 116.5 Idler Bracket - (Qty 1)
- 181.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 181.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 181.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 181.4 .360 ID Plastic Washer - (Qty 2)
- 181.5 48/52 Discharge Top Bracket - (Qty 1)
- 181.6 48/52 Discharge Lower Bracket - (Qty 1)
- 181.7 Discharge Chute Hanger-Deck - (Qty 1)
- 181.8 Discharge Chute (Rubber Component) - (Qty 1)
- 182.1 5/16-18 Nylon Flange Nut - (Qty 7)
- 182.2 5/16-18 X 1 GR 5 Hex Bolt Zinc - (Qty 2)
- 182.3 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 182.4 .360 ID Plastic Washer - (Qty 2)
- 182.5 60 Discharge Lower Bracket - (Qty 1)
- 182.6 60 Discharge Chute Upper - (Qty 1)
- 182.7 Discharge Chute Hanger-Deck - (Qty 1)
- 182.8 Discharge Chute (Rubber Component) - (Qty 1)
