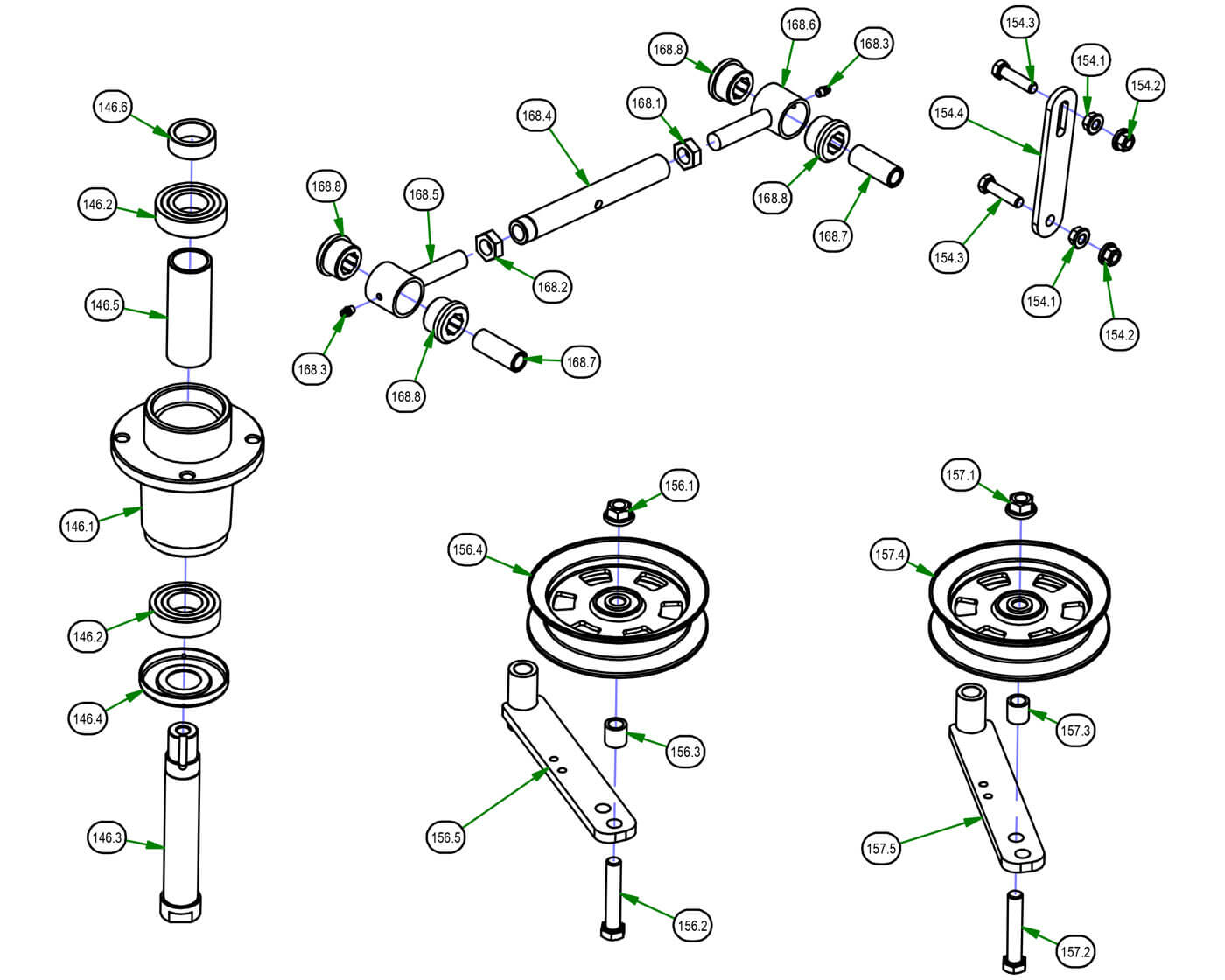

Deck Sub Assemblies - Spindle, Deck Hanger, Deck Idler, Turnbuckle
Parts Index
- 146 Short Shaft Spindle Complete with Hardware - (Qty 9)
- 146.1 Aluminum Spindle Housing-2010 - (Qty 1)
- 146.2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 146.3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 146.4 Dust Cover for 037-8000-00 - - (Qty 1)
- 146.5 Tube Spacer for Spindle Shaft - (Qty 1)
- 146.6 Collar Spacer - Top of Spindle - (Qty 1)
- 154 MZ/ZT Deck Hanger Assembly - (Qty 1)
- 154.1 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 154.2 3/8 Nylock Flange Nut - (Qty 2)
- 154.3 3/8 x 1 1/2 Bolt - (Qty 2)
- 154.4 Deck hanger for 039-2127-17 - (Qty 1)
- 156 2017 MZ/ZT Deck Idler Assembly - (Qty 2)
- 156.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 156.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 156.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 156.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 156.5 Idler Bracket - (Qty 1)
- 157 2017 54"/48" Deck Idler Assembly - (Qty 1)
- 157.1 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 157.2 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 157.3 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 157.4 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 157.5 Idler Bracket - (Qty 1)
- 168 Toplink - (Qty 2)
- 168.1 Nut, 5/8-18 RH - (Qty 1)
- 168.2 Nut, 5/8-18 LH - (Qty 1)
- 168.3 1/4-28 Threaded Grease Fitting - (Qty 2)
- 168.4 2018 Maverick Toplink Body - (Qty 1)
- 168.5 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 168.6 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 168.7 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 168.8 2018 Maverick Topllink Bushing - (Qty 4)
