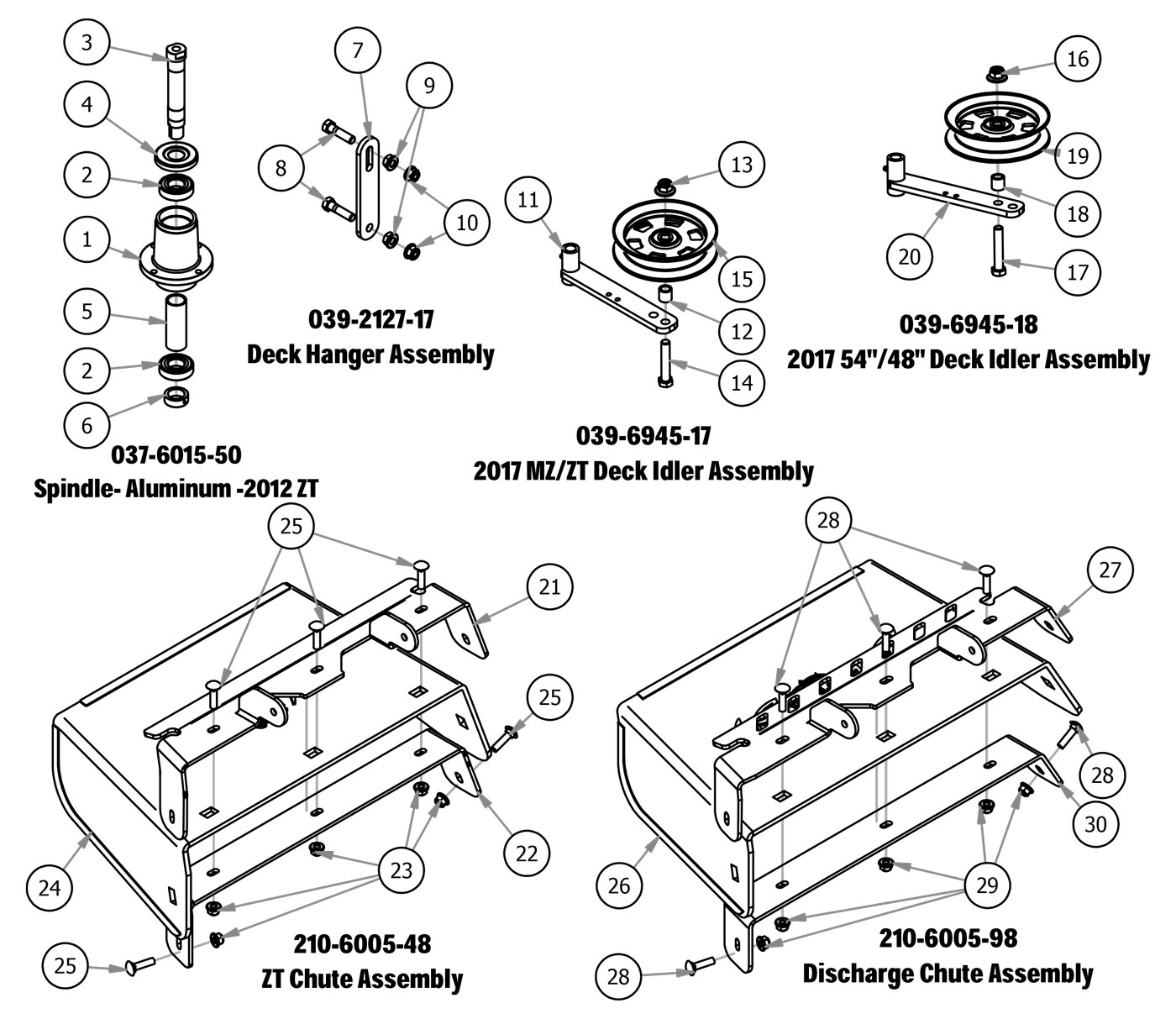

Spindle, Deck Hanger, Deck Idler, Discharge Chute Assembly
Parts Index
- 1 Aluminum Spindle Housing-2010 - (Qty 1)
- 2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 4 Dust Cover for 037-8000-00 - - (Qty 1)
- 5 Tube Spacer for Spindle Shaft - (Qty 1)
- 6 Collar Spacer - Top of Spindle - (Qty 1)
- 7 Deck hanger for 039-2127-17 - (Qty 1)
- 8 3/8 x 1 1/2 Bolt - (Qty 2)
- 9 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 10 3/8 Nylock Flange Nut - (Qty 2)
- 11 Idler Bracket - (Qty 1)
- 12 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 13 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 14 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 15 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 17 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 18 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 19 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 20 Idler Bracket - (Qty 1)
- 21 Idler Bracket - (Qty 1)
- 22 48/52 Discharge Lower Bracket - (Qty 1)
- 23 5/16-18 Nylon Flange Nut - (Qty 5)
- 24 Discharge Chute (Rubber Component) - (Qty 1)
- 25 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 26 Discharge Chute (Rubber Component) - (Qty 1)
- 27 60 Discharge Chute Upper - (Qty 1)
- 28 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 29 5/16-18 Nylon Flange Nut - (Qty 5)
- 30 60 Discharge Lower Bracket - (Qty 1)
