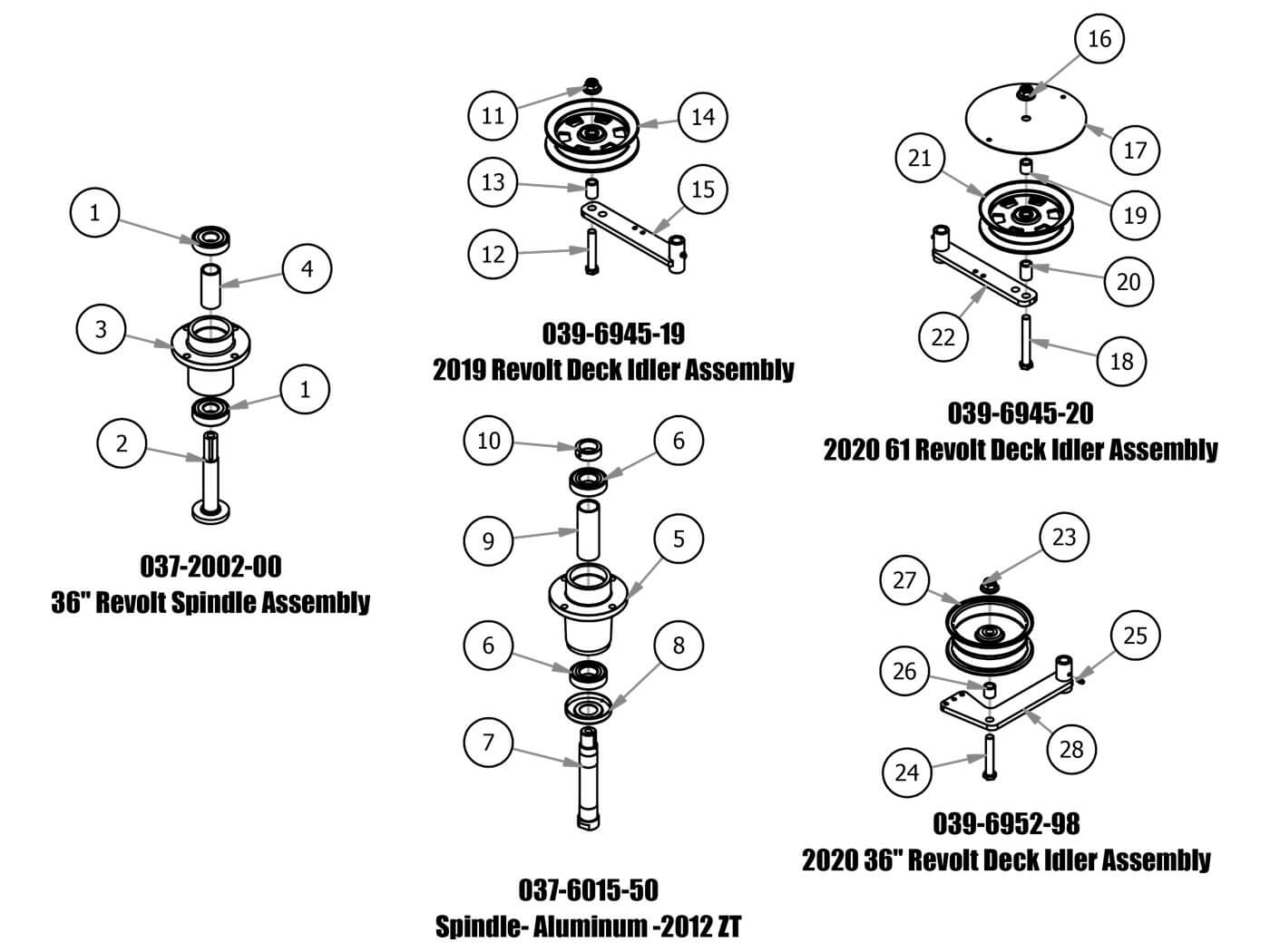

Spindle Assembly & Deck Idler Assembly
Parts Index
- 1 MZ Spindle Bearing - (Qty 2)
- 2 36" Revolt Spindle Shaft - (Qty 1)
- 3 MZ Spindle Housing - (Qty 1)
- 4 MZ Spindle Spacer-Component - (Qty 1)
- 5 Aluminum Spindle Housing-2010 - (Qty 1)
- 6 OBSOLETE USE 037-6029-00 - (Qty 2)
- 7 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 8 Dust Cover for 037-8000-00 - - (Qty 1)
- 9 Tube Spacer for Spindle Shaft - (Qty 1)
- 10 Collar Spacer - Top of Spindle - (Qty 1)
- 11 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 12 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 13 .502x.750x1.130 Length Spacer - (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 15 Idler Bracket - (Qty 1)
- 16 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 17 61" Revolt Idler Pulley Cover--Black - (Qty 1)
- 18 1/2-13 X 3.75 Hex Bolt-Grade 5 - (Qty 1)
- 19 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 20 .502x.750x1.130 Length Spacer - (Qty 1)
- 21 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 22 Idler Bracket - (Qty 1)
- 23 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 24 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 25 1/4-28 Threaded Grease Fitting - (Qty 1)
- 26 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 27 Double Bearing Flat Idler - (Qty 1)
- 28 2020 SD/36" Deck Idler Weldment--Plated - (Qty 1)
28 Results
