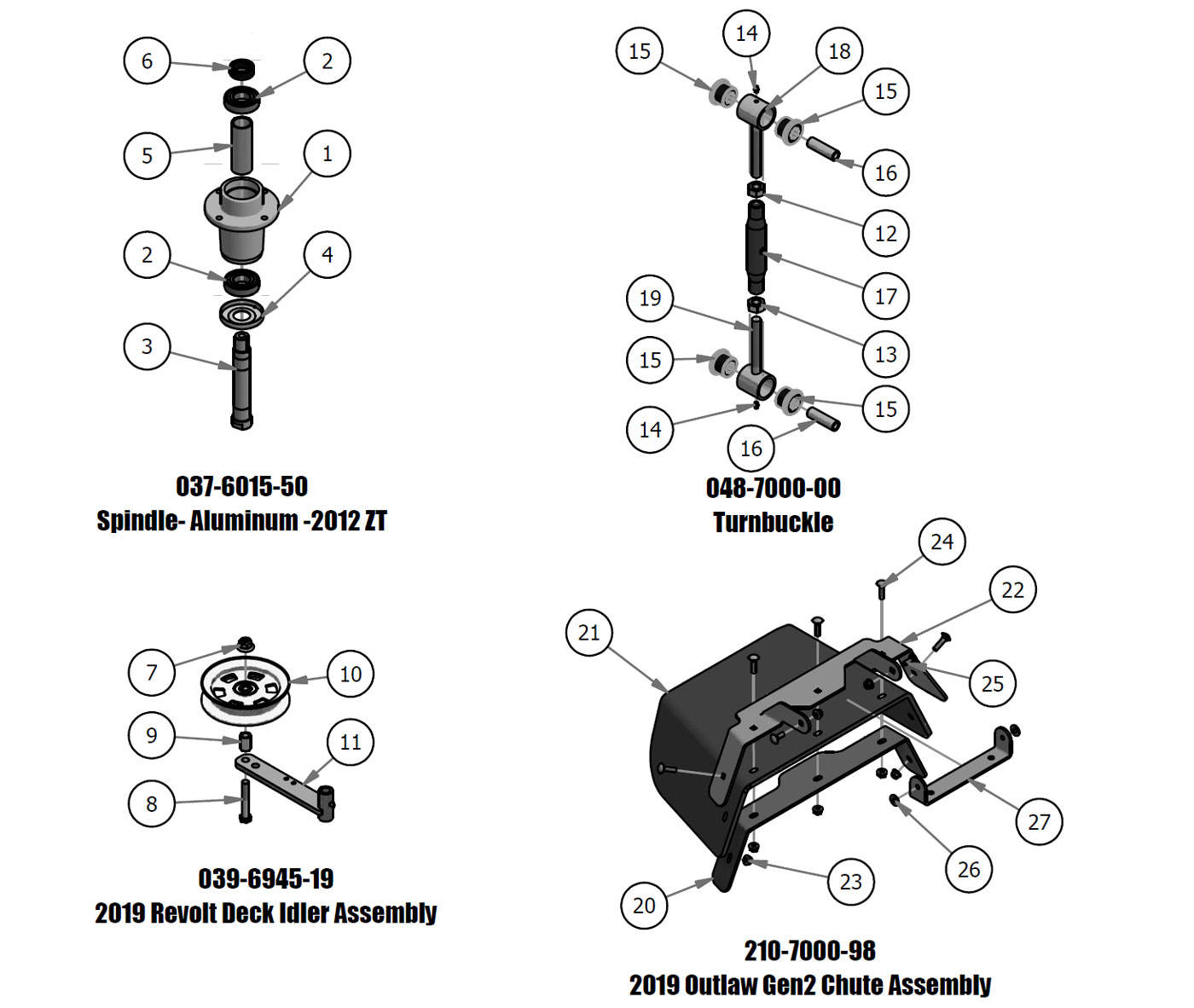

Spindle, Deck Idler, Turnbuckle, Chute Assembly
Parts Index
- 1 Aluminum Spindle Housing-2010 - (Qty 1)
- 2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 4 Dust Cover for 037-8000-00 - - (Qty 1)
- 5 Tube Spacer for Spindle Shaft - (Qty 1)
- 6 Collar Spacer - Top of Spindle - (Qty 1)
- 7 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 8 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 9 .502x.750x1.130 Length Spacer - (Qty 1)
- 10 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 11 Idler Bracket - (Qty 1)
- 12 11/16-12 Hex Nut-2015 Toplink - (Qty 1)
- 13 11/16-12 Lefthand Hex Nut-Topl - (Qty 1)
- 14 1/4 Drive-in Grease Fitting - (Qty 2)
- 15 Bushing-2015 Outlaw Toplink - (Qty 4)
- 16 Sleeve-2015 Outlaw Toplink - (Qty 2)
- 17 2015 Outlaw Toplink Body - (Qty 1)
- 18 2015 Outlaw Toplink RH End - (Qty 1)
- 19 2015 Outlaw Toplink LH End - (Qty 1)
- 20 Chute Bracket (lower) - (Qty 1)
- 21 Discharge Chute (Rubber Component) - (Qty 1)
- 22 Chute Bracket (upper) - (Qty 1)
- 24 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 25 5/16 x 7/8 Carriage Bolt - (Qty 2)
- 26 .360 ID Plastic Washer - (Qty 2)
- 27 Chute Hanger - (Qty 1)
26 Results
$0.00
Call us to place an order for this part.
