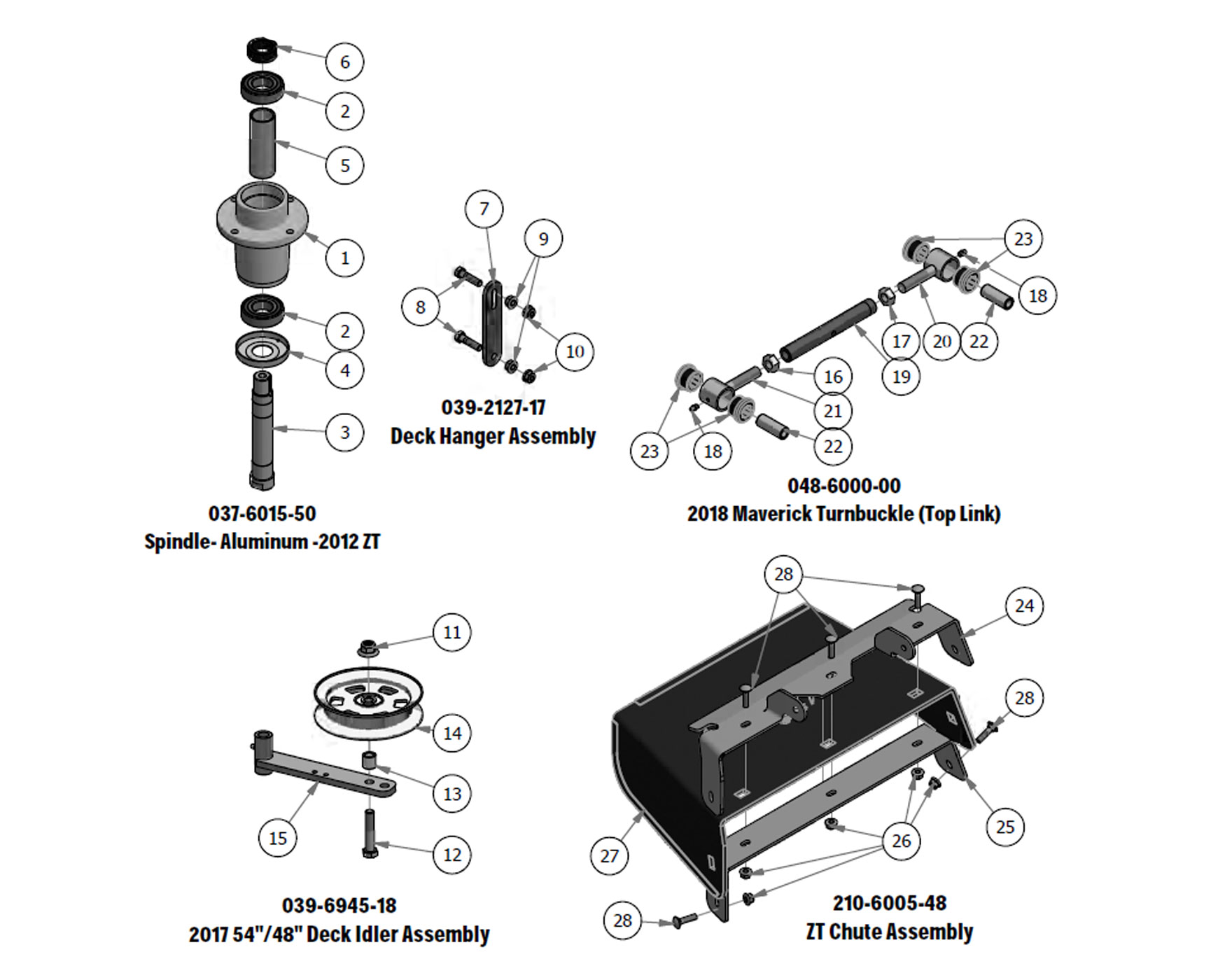

Spindle, Deck Hanger, Deck Idler, Turnbuckle, Chute Assembly
Parts Index
- 1 Aluminum Spindle Housing-2010 - (Qty 1)
- 2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 4 Dust Cover for 037-8000-00 - - (Qty 1)
- 5 Tube Spacer for Spindle Shaft - (Qty 1)
- 6 Collar Spacer - Top of Spindle - (Qty 1)

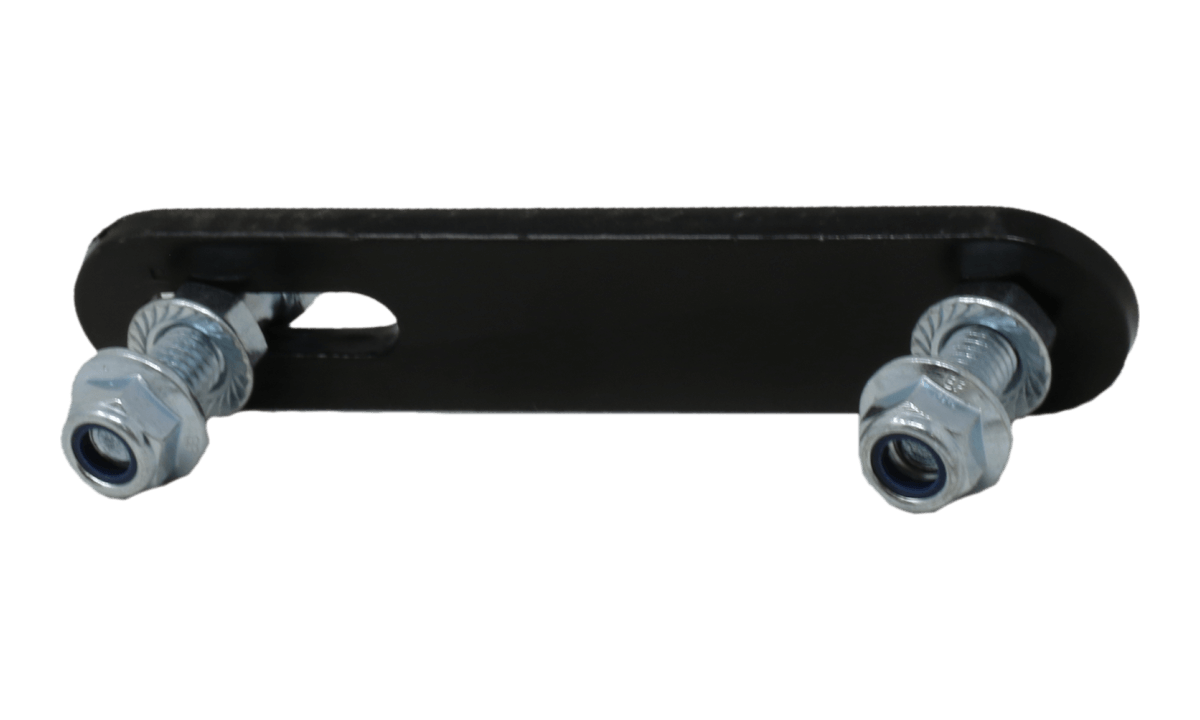

- 7 MZ/ZT Deck Hanger Assembly - (Qty 1)
- 8 3/8 x 1 1/2 Bolt - (Qty 2)
- 9 3/8-16 Hex Flange Nuts Zinc w/ - (Qty 2)
- 10 3/8 Nylock Flange Nut - (Qty 2)
- 11 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 12 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 13 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 14 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)

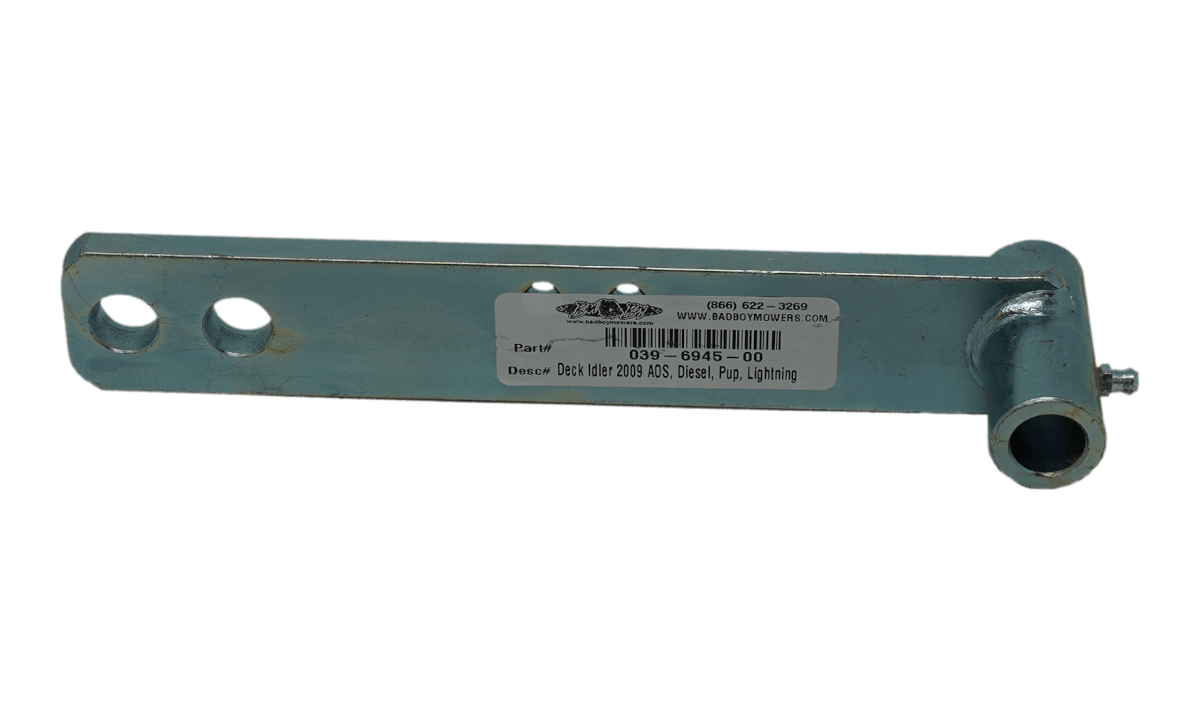

- 15 Idler Bracket - (Qty 1)

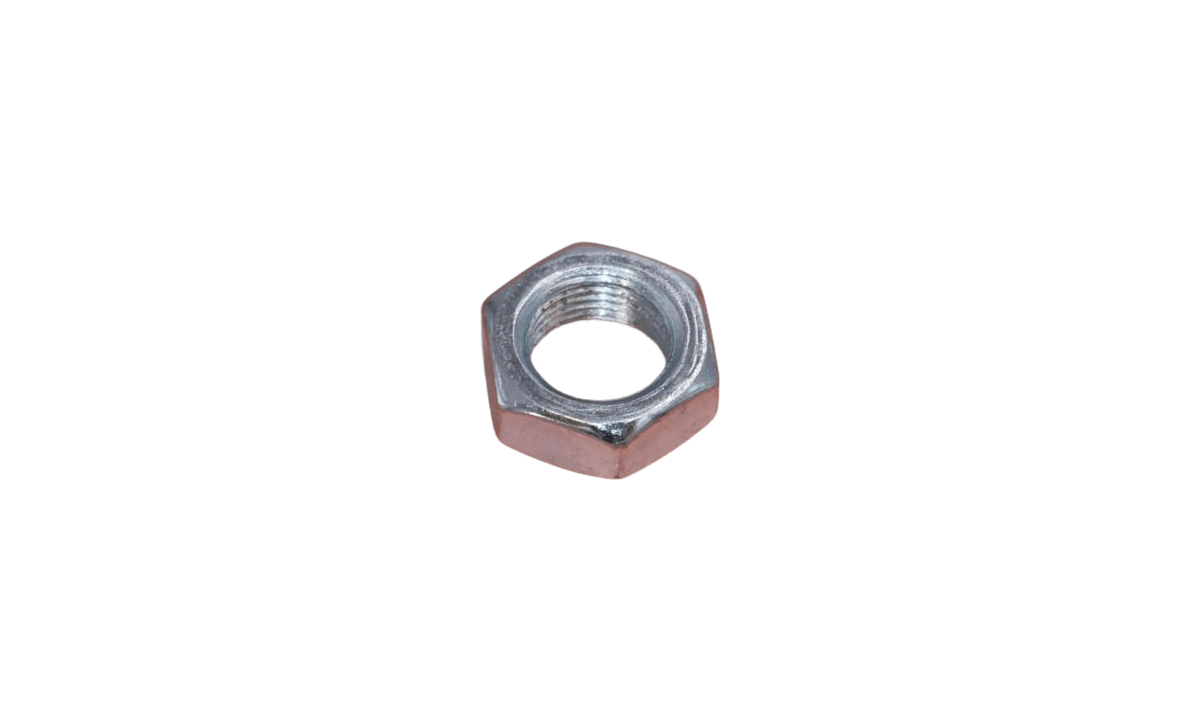

- 16 Nut, 5/8-18 RH - (Qty 1)

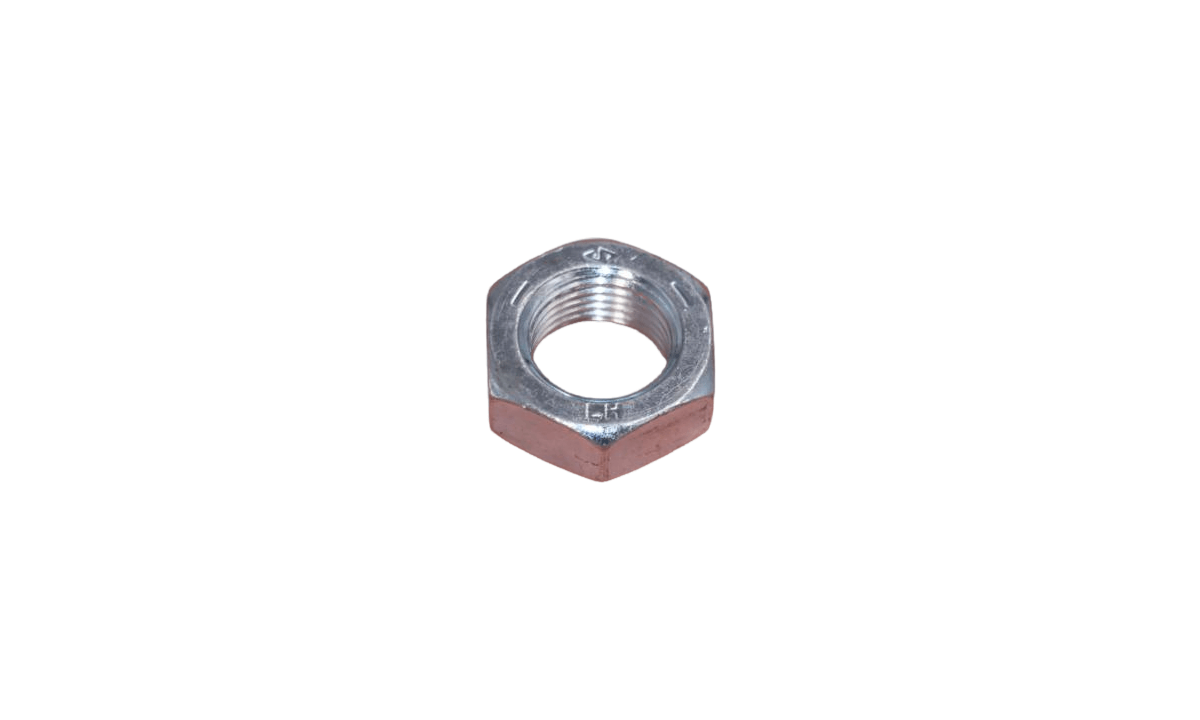

- 17 Nut, 5/8-18 LH - (Qty 1)
- 18 1/4-28 Threaded Grease Fitting - (Qty 2)

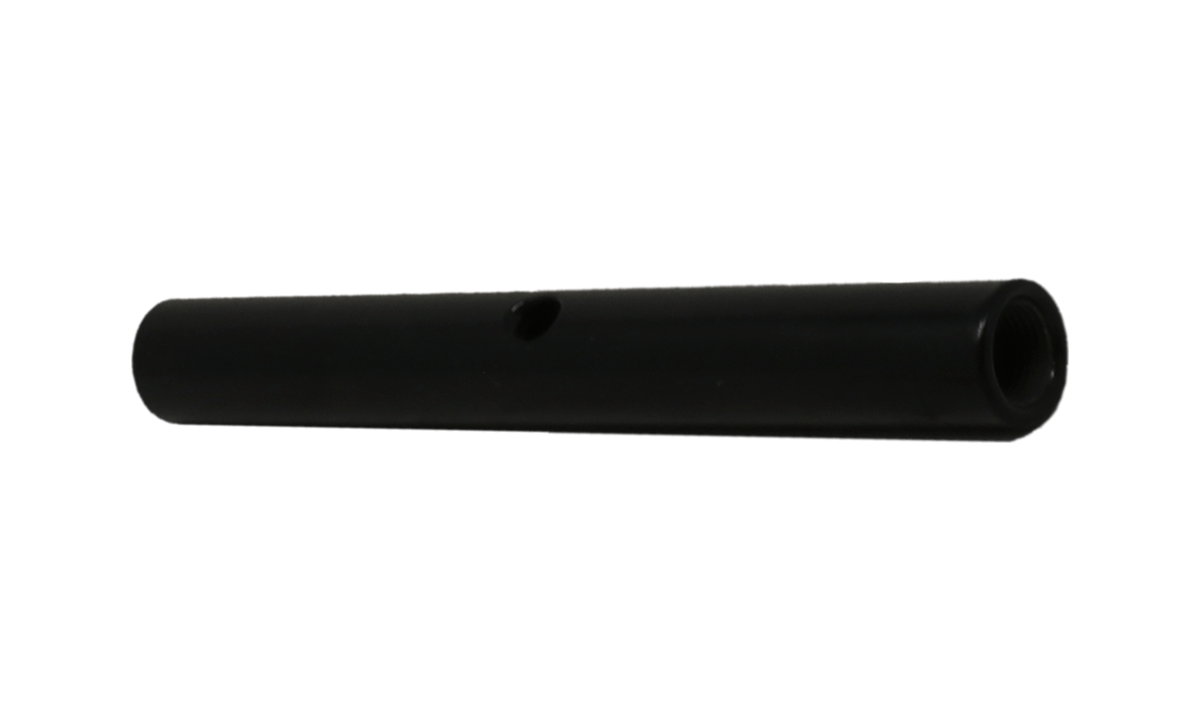

- 19 2018 Maverick Toplink Body - (Qty 1)

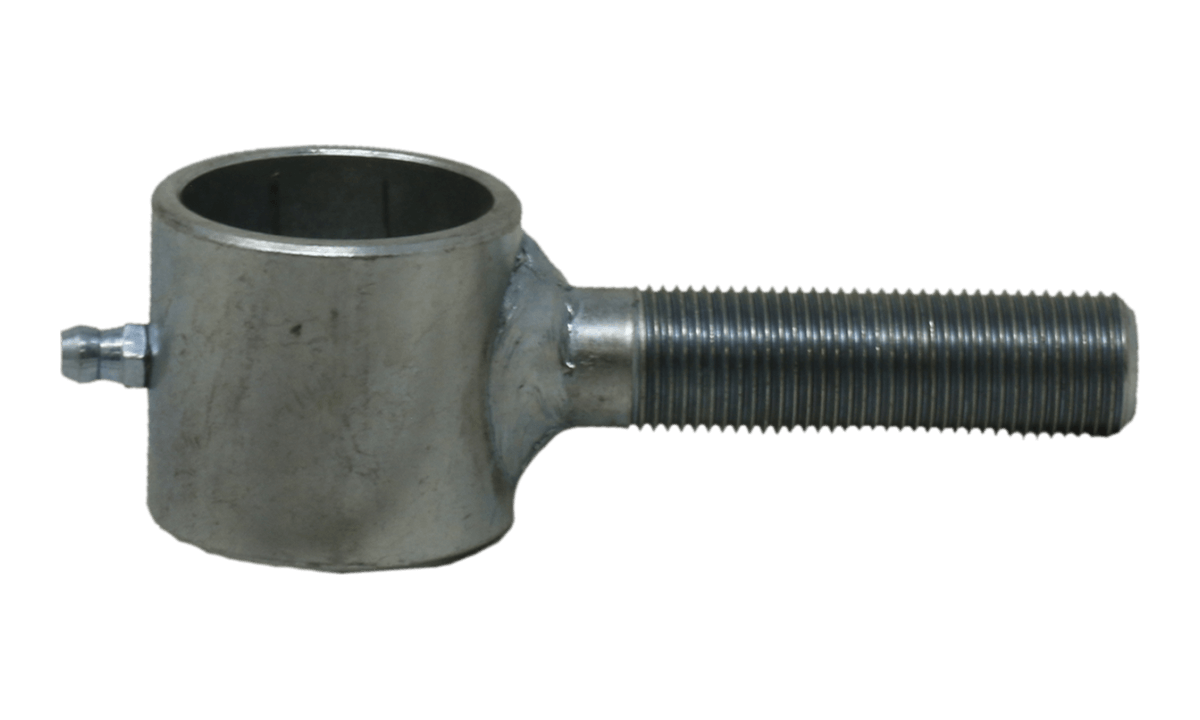

- 20 2018 Maverick Topllink Bushing Retainer-Left Hand - (Qty 1)
- 21 2018 Maverick Topllink Bushing Retainer-Right Hand - (Qty 1)
- 22 2018 Maverick Topllink Bushing Sleeve - (Qty 2)
- 23 2018 Maverick Topllink Bushing - (Qty 4)
- 24 48/52 Discharge Top Bracket - (Qty 1)
- 25 48/52 Discharge Lower Bracket - (Qty 1)
- 26 5/16-18 Nylon Flange Nut - (Qty 5)

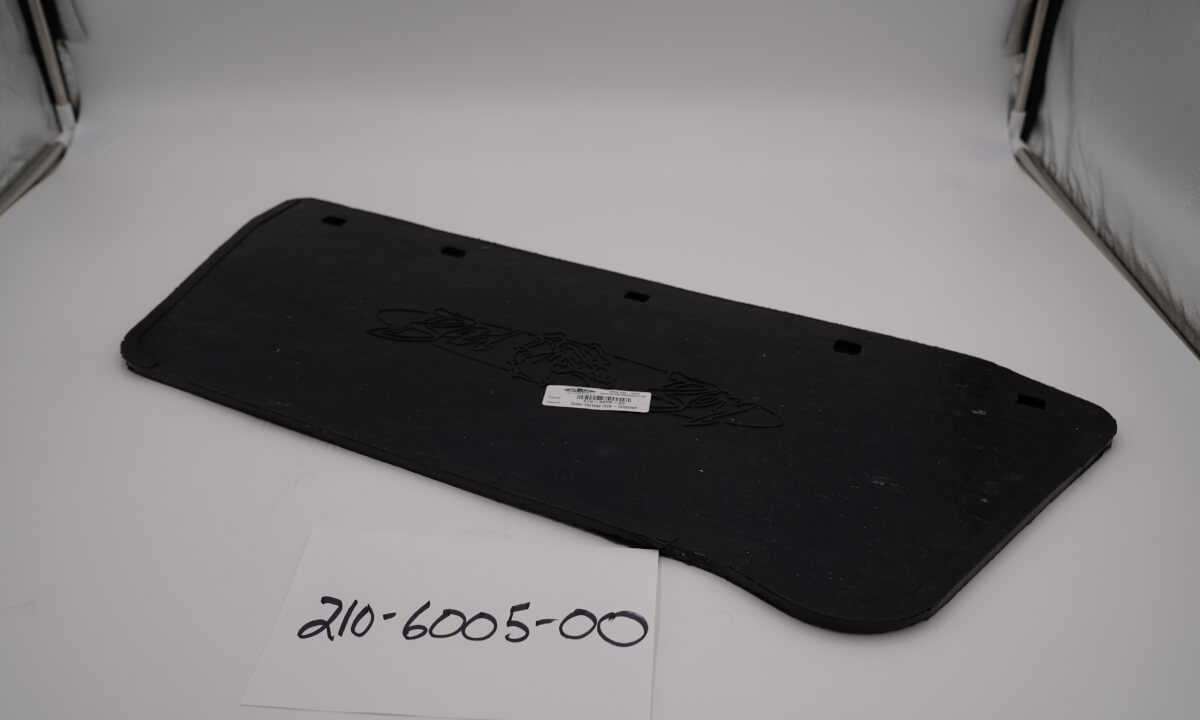

- 27 Discharge Chute (Rubber Component) - (Qty 1)
- 28 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
