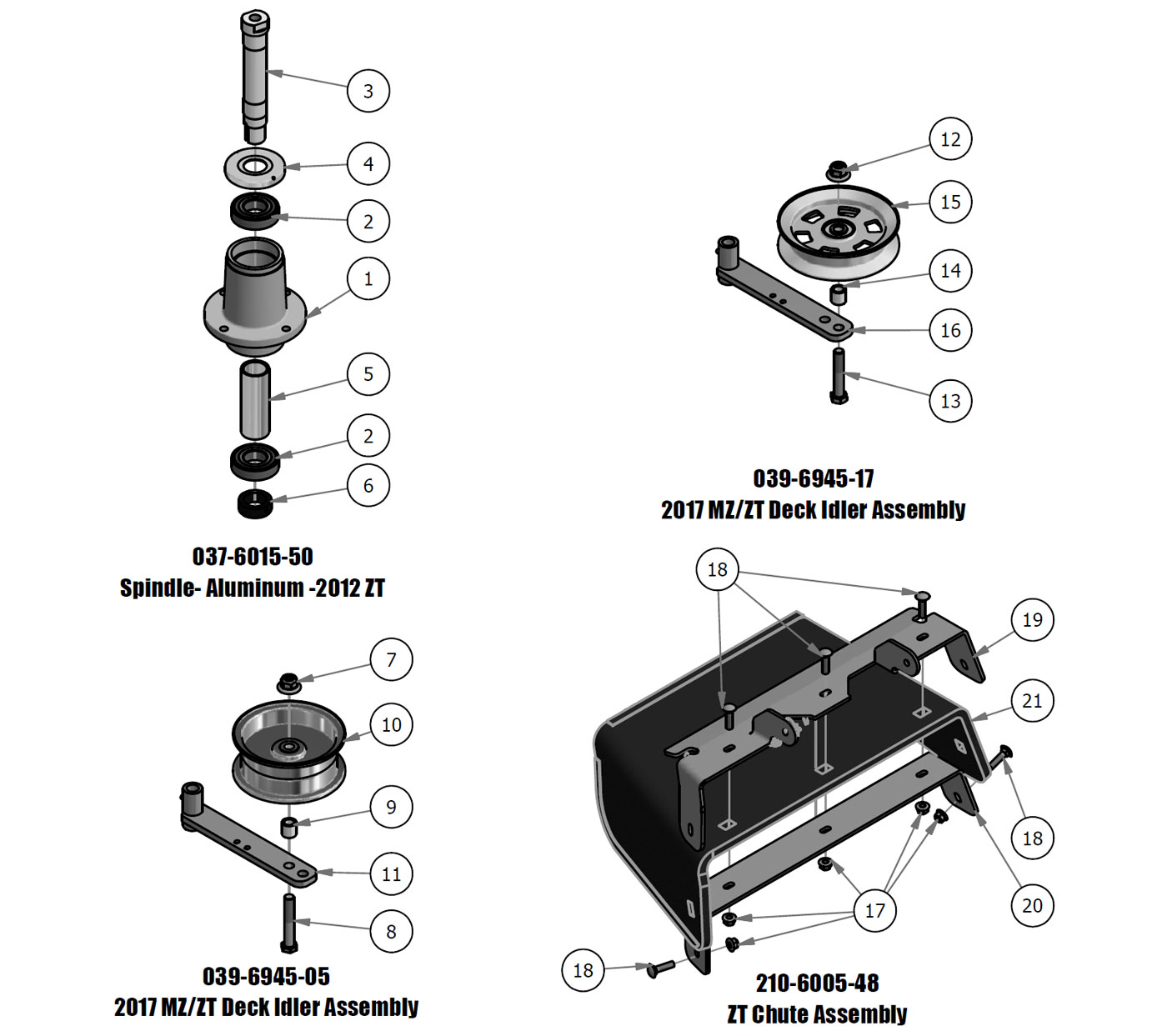

Deck Sub-assemblies
Parts Index
- 1 Aluminum Spindle Housing-2010 - (Qty 1)
- 2 OBSOLETE USE 037-6029-00 - (Qty 2)
- 3 Short Spindle Shaft for Locking Collar- No Grooved - (Qty 1)
- 4 Dust Cover for 037-8000-00 - - (Qty 1)
- 5 Tube Spacer for Spindle Shaft - (Qty 1)
- 6 Collar Spacer - Top of Spindle - (Qty 1)
- 7 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 8 1/2-13 X 3 GR 5 Hex Bolts Zinc - (Qty 1)
- 9 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 10 Double Bearing Flat Idler - (Qty 1)
- 11 Idler Bracket - (Qty 1)
- 12 1/2-13 Nylon Insert Flange Nut - (Qty 1)
- 13 1/2-13 X 2-3/4 GR 5 Bolt Zinc - (Qty 1)
- 14 Spacer 3/4ODx1/2IDx0.75 - (Qty 1)
- 15 2017 5" Split Idler Pulley-Tensioner Only - (Qty 1)
- 16 Idler Bracket - (Qty 1)
- 17 5/16-18 Nylon Flange Nut - (Qty 5)
- 18 5/16-18 X 1-1/4 Carriage Bolt - (Qty 5)
- 19 48/52 Discharge Top Bracket - (Qty 1)
- 20 48/52 Discharge Lower Bracket - (Qty 1)
- 21 Discharge Chute (Rubber Component) - (Qty 1)
21 Results
